Parts Information |
Document ID: LWIK-3SR3ZD |
TP 600 - FRU parts listing
Applicable to: World-Wide
|
Index |

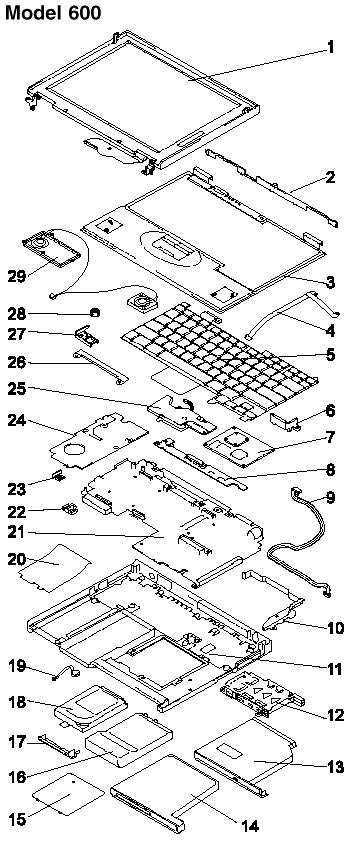

System Unit |
|
|
1 |
LCD Assembly (see LCD FRU (TFT)) |
|
|
2 |
Center Cover (see misc. parts) |
see below |
|
3 |
Keyboard Bezel |
05K7046 |
|
3 |
Keyboard Bezel - Korea |
05K7048 |
|
4 |
Speaker and Microphone Cable (see Speaker) |
see below |
|
5 |
Keyboard (see Keyboard) |
|
|
6 |
Holder for CPU Card (see misc. parts) |
see below |
|
7 |
CPU Card (MMX 233 MHz) |
12J0408 |
|
|
CPU Card (Pentium II 233 MHz) |
10L0888 |
|
|
CPU Card (Pentium II 266 MHz) |
10L0887 |
|
|
CPU Card (Pentium II 300 MHz) |
10L1020 |
|
8 |
Sub Card |
05K3468 |
|
9 |
Mic. Cable (see misc. parts - this is a flexible, twisted-wire cable) |
see below |
|
10 |
Guide Rail (see misc. parts) |
see below |
|
11 |
Base Cover (with modem) |
05K4826 |
|
|
Base Cover (without modem) |
05K5376 |
|
|
Base Cover for Korea |
05K5274 |
|
|
Base Cover for China |
05K5651 |
|
|
Base Cover for Taiwan |
05K5667 |
|
12 |
PC Card Slot |
05K4790 |
|
13 |
CD-ROM Drive |
05K8873 |
|
14 |
Diskette Drive |
05K8874 |
|
15 |
DIMM Cover |
05K7064 |
|
16 |
Battery Pack |
02K7018 |
|
17 |
Hard Disk Drive Cover, Coin Screw |
05K5995 |
|
18 |
Hard Disk Drive (3.2 GB) |
83H7090 |
|
|
Hard Disk Drive (4.0 GB) |
83H7085 |
|
|
Hard Disk Drive (5.1 GB) |
83H7102 |
|
|
Hard Disk Drive (6.4 GB) |
83H7103 |
|
|
Hard Disk Shield |
05K4752 |
|
19 |
Backup Battery |
02K6502 |
|
20 |
Insulator for Modem (see misc. parts) |
|
|
21 |
System Board (12.1 & 13.0 LCD model) |
10L1740 |
|
|
System Board (13.3 LCD model) |
10L1711 |
|
22 |
Backup Battery Holder |
05K4827 |
|
23 |
Power Switch Knob (see misc. parts) |
|
|
24 |
Modem Card |
05K3469 |
|
25 |
Fan |
05K4830 |
|
26 |
Keyboard Bracket (see misc. parts) |
|
|
27 |
Bracket for Keyboard Corner (see misc. parts) |
|
|
28 |
TrackPoint Cap |
|
|
29 |
Speaker (inlcudes speaker and microphone cable which is a flat, L shaped cable) |
02K4861 |
|
|
Telephone Cable |
05K2707 |
|
|
External FDD Cover |
05K2643 |
|
|
HDD Bracket |
05K4752 |
|
|
Blank Bay |
05K4842 |
|
|
CD-ROM Carrying Case |
05K4843 |
|
|
AC Adapter (56 W) |
|
|
|
2-pin |
11J8974 |
|
|
2-pin |
02K6497 |
|
|
3-pin |
02K7007 |
|
|
3-pin |
02K7011 |
|
|
Doors |
05K4828 |
|
|
FDD |
|
|
|
I/O Right |
|
|
|
I/O Left |
|
|
|
USB |
|
|
|
Miscellaneous Parts for Base Cover |
05K4827 |
|
|
System Miscellaneous Parts |
05K4831 |
|
|
Center Cover |
|
|
|
Guide Rail |
|
|
|
Insulator for Modem |
|
|
|
Insulator for Bay |
|
|
|
Speaker and Microphone Cable |
|
|
|
Holder for CPU Card |
|
|
|
Power Switch Knob |
|
|
|
Blank Door for Modem |
|
|
|
Latch for Keyboard Bezel |
|
|
|
Bracket for Keyboard |
|
|
|
Bracket for Blind Corner |
|
|
|
Bracket for Keyboard Corner |
|
|
|
Planar Miscellaneous Parts |
05K4829 |
|
|
I/O Plate |
|
|
|
Hex Stud for Bus |
|
|
|
Hex Stud for D-Sub |
|
|
|
FDD/Audio Cover |
|
|
|
USB Plate |
|
|
|
Holder Sub Card |
|
|
|
Insulator Planar Battery |
|
|
|
Insulator Planar Bay |
|
|
|
Insulator Planar Fuse |
|
|
FRU telephone cable |
05K2707 |
|
FRU modem kit - UK |
05K2739 |
|
FRU modem kit - France |
05K2740 |
|
FRU modem kit - Germany |
05K2741 |
|
FRU modem kit - Spain |
05K2742 |
|
FRU modem kit - Italy |
05K2743 |
|
FRU modem kit - Netherlands |
05K2744 |
|
FRU modem kit - Denmark |
05K2745 |
|
FRU modem kit - Norway / Finland |
05K2746 |
|
FRU modem kit - Sweden |
05K2747 |
|
FRU modem kit - Switzerland |
05K2749 |
|
FRU modem kit - Austria |
05K2750 |
|
FRU modem kit - Belgium |
05K2751 |
|
FRU modem kit - Portugal |
05K2752 |
|
FRU modem kit - Turkey |
05K2753 |
|
FRU modem kit - Israel |
05K2754 |
|
FRU modem kit - New Zealand |
05K2755 |
|
FRU modem kit - Australia |
05K2756 |
|
FRU modem kit - Singapore |
05K2757 |
To view the keyboard and miscellaneous FRU parsts list, click here (
).
|
