Service Hints & Tips |
Document ID: GSMH-3ETDJB |
TP 560/E - Locations Rear View
Applicable to: World-Wide

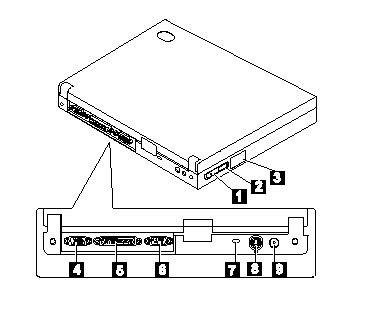

Rear View:
|
1 |
Power Switch |
|
2 |
IR Port |
|
3 |
External Diskette Drive Connector |
|
4 |
External Monitor |
|
5 |
Parallel Connector |
|
6 |
Serial Connector |
|
7 |
Security Keyhole |
|
8 |
External-Input-Device Connector |
|
9 |
Power Jack |
|
