Service Hints & Tips |
Document ID: LWIK-3PMQHD |
TP 765D/L - 3010 LCD Front Cover
Applicable to: World-Wide

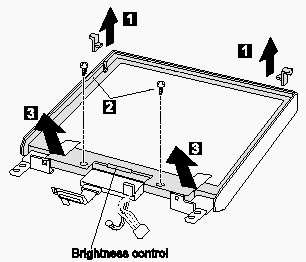

3010 LCD Front Cover
Diskette Drive or CD-ROM Drive (1020)
Battery Pack (1030)
Hard Disk Drive (1040)
Top Cover (1060)
Keyboard Unit (1070)
LCD Unit (1080)
|
Step |
Size (quantity) |
Memo (torque) |
|
2. |
M2.5 x 6 mm (2) |
(3 kgcm) |
Note: Do not reuse a screw you removed. Use a new screw and tighten the screw to the torque specification shown.
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
10-12-97 | |
|
Last Updated |
19-08-98 | |
|
Revision Date |
18-08-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 765L, ThinkPad 765D | |
|
Machine Type |
9546, 9547 | |
|
