TP 560/E - 1130 LCD Panel

100.069 bytes

Service Hints & Tips

Document ID: LWIK-3PCP79

This document is provided to IBM and our Business Partners to help sell and/or service IBM products. It is not to be distributed beyond that audience or used for any other purpose.

TP 560/E - 1130 LCD Panel

Applicable to: World-Wide

1130 LCD Panel:

Battery Pack (1030)
Keyboard Unit (1050)
LCD Assembly (1060)
LCD Front Cover (1120)

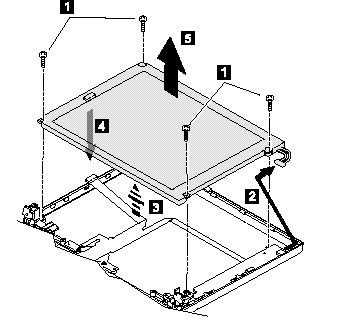

DSTN Panel

Step

Length (Quantity)

Torque

1

M 2.5 x 6 mm (4) flathead

3.0 kgcm

Note:

Do not use the screw that you have removed.

Use a new screw and tighten the screw to the torque specification shown.

When replacing:
Before connecting the LCD connector and the inverter card, ensure that they are properly aligned.

TFT Panel

Note for the TFT LCD:

For Model 560, use only the TFT 1 LCD.
For Model 560E:
- When replacing the entire LCD assembly,
use only the TFT 2.
- When replacing an individual LCD FRU, use
either the TFT 1 or the TFT 2 FRUs
depending on the assembly.
To distinguish the TFT 1 panel from the TFT 2
panel, note the shape of its cable, shown by the arrow in the circle.

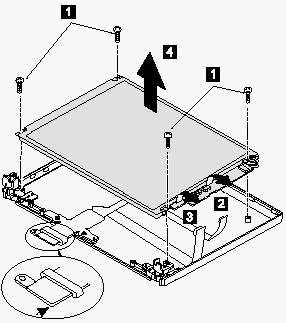

TFT 1 (P/N 12J1600)

Step

Length (Quantity)

Torque

1

M 2.5 x 6 mm (4)

3.0 kgcm

Note:

Do not use the screw that you have removed.

Use a new screw and tighten the screw to the torque specification shown.

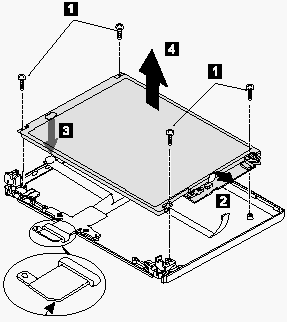

TFT 2 (P/N 11J9626)

Step

Length (Quantity)

Torque

1

M 2.5 x 6 mm (4)

3.0 kgcm

Note:

Do not use the screw that you have removed.

Use a new screw and tighten the screw to the torque specification shown.

Notes:

There are two types of rear covers for the ThinkPad 560 TFT LCD unit.
Make sure which type you have and follow the relevant information.

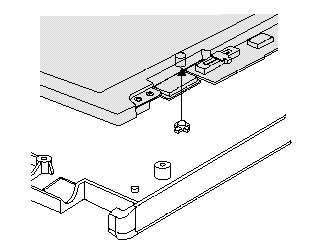

1. If there are bosses on the rear cover, put each boss into each hole of the LCD panel assembly.

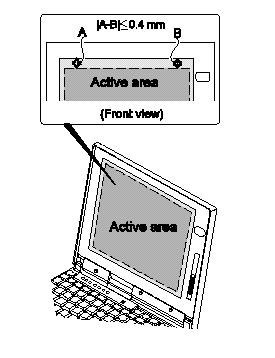

2. If there are no bosses on the rear cover, assemble the panel as shown in the following figure:

Note:
The difference between A and B must be less than 0.4 mm.
