Service Hints & Tips |
Document ID: MNOK-3QHUBC |
Aptiva - Windows 95 modem diagnostics port information
Applicable to: World-Wide
1. Click "Start", "Settings", "Control Panel", then double click on the "Modems" icon.

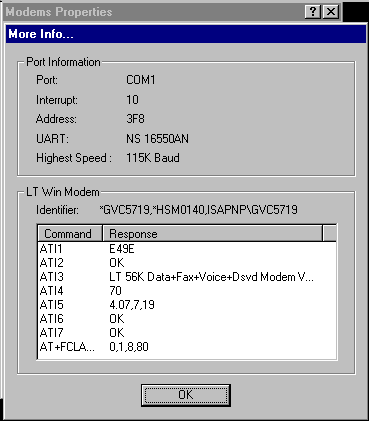

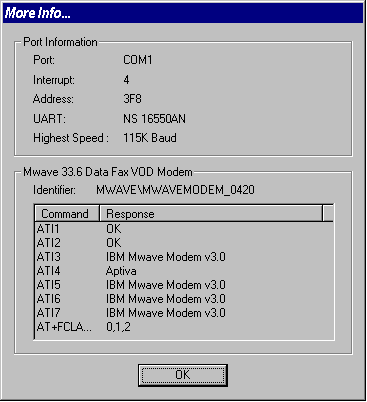

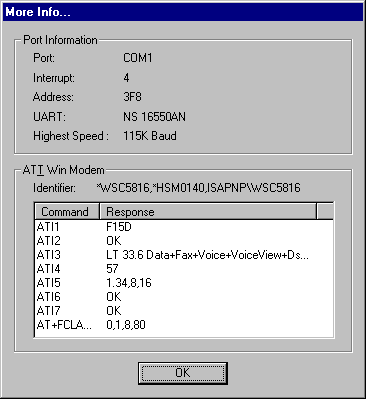

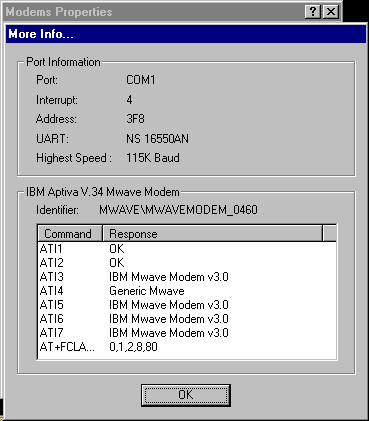

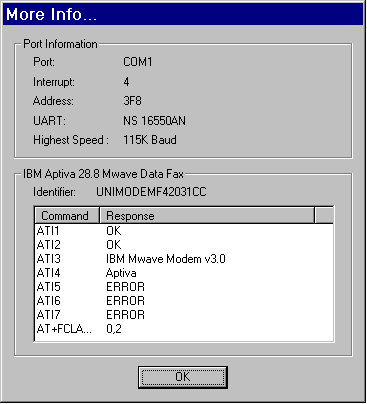

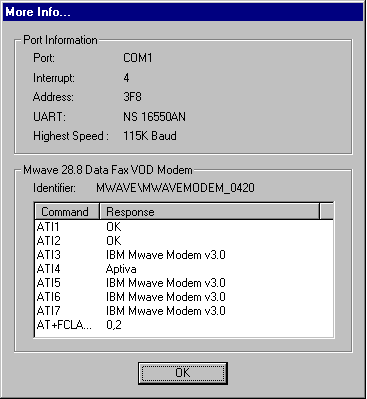

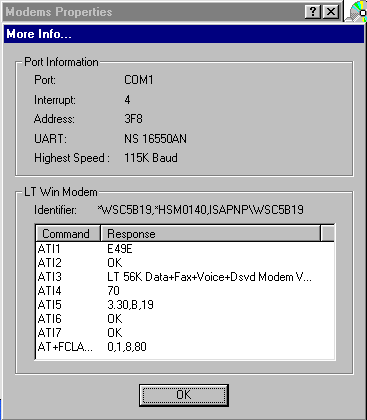

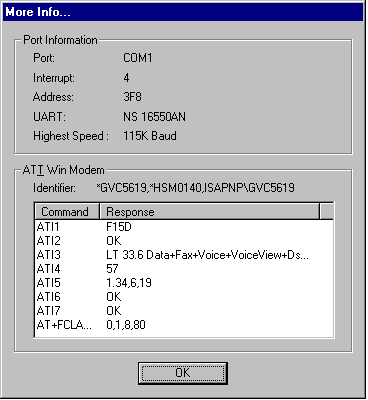

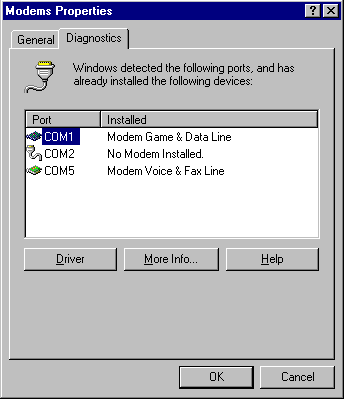

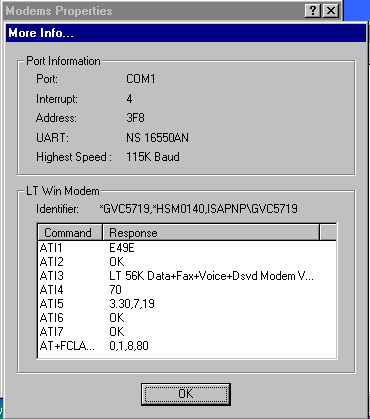

2. Click on the "Diagnostics" tab at the top of the screen. Make sure "COM1" is highlighted, then on the "More Info" button. The following are the screens that should be seen with the respective models.
Mxx & Axx Series
Mxx & Axx with 33.6
2176 and 2134-Cxx Series without 33.6 upgrade
2176 and 2134-Cxx Series with 33.6 upgrade
2176-C6V
2159-Sxx with MWave
2159-S80 & S90
2161-C8E,C8H,C8X,C9E,C9S,C9X & 2162-S8H
2161-C8F,C8M,C9F & 2162-S8C,S9C,S9H,S9M
2137
2140 & 2142
|
