PC Server 720 - Light emitting diodes/LCD's
Applicable to: World-Wide
Light Emitting Diodes/Liquid Crystal Display
Light Emitting Diodes

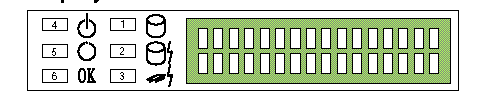

The following is a list of the front operator panel light emitting diodes (LEDs) followed by the definition for each LED.
Color Indications:
Green = proper operation
Yellow = alert condition
|
LED Number |
Definition |
|
1 |
Hard disk drive activity |
|
2 |
DASD error |
|
3 |
Processor Complex Error |
|
4 |
Color green (POWER GOOD) |
|
5 |
Color green (POWER Enabled) |
|
6 |
Color green (All subsystems good) |
Liquid Crystal Display
The Liquid Crystal Display (LCD) on the front operator panel contains a 2-line by 16-character LCD (front panel display) driven by the 80C752 microprocessor. The front panel display receives and transmits ASCII characters. The LCD supports the upper- and lower-case ASCII character set.
Errors detected by the computer might be displayed on the LCD and/or on the standard display attached to the computer. This is helpful when a display is not attached to the computer or the attached display is inoperative.
|
