Service Hints & Tips |
Document ID: GSMH-3BDEQU |
TP 360P/PE,750P - System - Front View
Applicable to: World-Wide

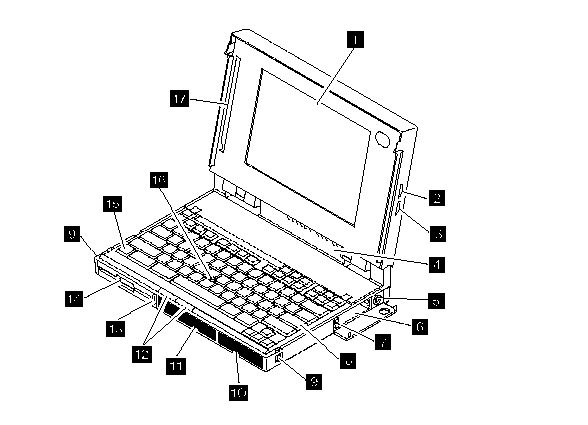

System Front View - (750P, 360P, 360PE):
1. Convertible LCD
2. Contrast Control
3. Brightness Control
4. Status Indicator
5. External Input Device Connector
6. PCMCIA Slot
7. PCMCIA Release Lever
8. Keyboard
9. LCD and Keyboard Latch
10. Hard Disk Drive Compartment
11. Battery Compartment
12. Click Buttons
13. Diskette-Eject Button
14. Diskette Drive
15. Fn Key
16. TrackPoint II
17. Stylus Pen
|
