Service Hints & Tips |
Document ID: RMIE-3FZGY9 |
Aptiva - 2136 Power supply cable connector specifications
Applicable to: World-Wide
Power Supply Cable Connector Specifications
Refer to the following figures when checking for voltages on power supply cable connectors.
When checking voltages, the power supply fan must be running. To power-on the power supply without using the on/off switch, use a screwdriver or other tool to short the connector CN21 (with the switch cable plug disconnected from the connector on the system board).

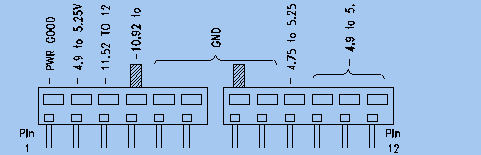

Figure 5- 2 System Board Power Supply Connectors

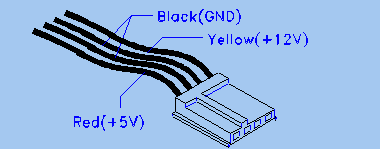

Figure 5- 3 Hard Drive or CD-ROM Power Cable Connector
Figure 5- 4 3.5-In. Diskette Drive Power Cable Connector

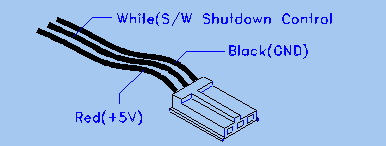

Figure 5- 5 Software Shutdown Auxiliary Control Cable
|
