Parts Information

Document ID: COBN-3GGC8H

Aptiva - 2161 Monitor & power cord (linecord) service parts

Applicable to: World-Wide

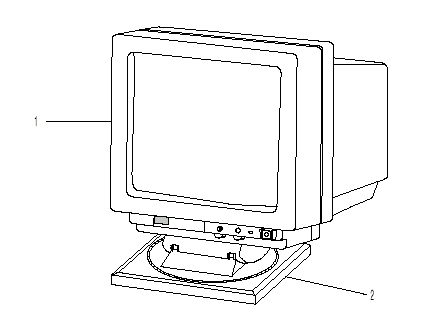

Assembly 5: Monitor and Power Cord (Linecord)

Asm - Index

Part Number

Units

Description

5 - 1

Monitor (includes I/O cable)

- 2

Stand(included with monitor)

EQ = Equatorial

NH = Northern Hemisphere

SH = Southern Hemisphere

LV = Low Voltage

HV = High Voltage

UV = Universal Voltage (auto-sense)

For monitors sold separately from IBM Aptiva System units, see the service information provided with the monitor.
EMEA uses Express Repair for Monitors.

14-Inch Monitor - Type 6542
(12.3-Inch diagonal viewing area) (P1438) SVGA Monitor

- 1

96G3108

1

- .28, 100/240 V 50/60 Hz, NH/UV

- 1

96G3109

1

- .28, 100/240 V 50/60 Hz, EQ/UV

- 1

96G3110

1

- .28, 100/127 V 50/60 Hz, NH/LV

- 1

96G3111

1

- .28, 200/240 V 50/60 Hz, NH/HV

- 1

96G3112

1

- .28, 100/240 V 50/60 Hz, NH/UV

- 1

96G3114

1

- .28, 100/240 V 50/60 Hz, EQ/UV

- 1

96G3113

1

- .28, 100/240 V 50/60 Hz, SH/UV

15-Inch Monitor - Type 6543
(13.4-Inch diagonal viewing area) (P1558-G50) SVGA Multi-Synch Monitor

- 1

96G3115

1

- .28, 100/127 V 50/60 Hz, NH/LV

- 1

96G3116

1

- .28, 200/240 V 50/60 Hz, NH/HV

- 1

96G3117

1

- .28, 100/240 V 50/60 Hz, NH/UV

- 1

96G3120

1

- .28, 100/240 V 50/60 Hz, NH/UV

- 1

96G3119

1

- .28, 100/240 V 50/60 Hz, EQ/UV

- 1

96G3118

1

- .28, 100/240 V 50/60 Hz, SH/UV

- 1

1

17-Inch Monitor - Type 6543
(15.7-Inch diagonal viewing area) (P1558-G70) SVGA Multi-Synch Monitor

- 1

96G3121

1

- .28, 100/240 V 50/60 Hz, NH/UV

- 1

96G3124

1

- .28, 100/240 V 50/60 Hz, NH/UV

- 1

96G3123

1

- .28, 100/240 V 50/60 Hz, EQ/UV

- 1

96G3122

1

- .28, 100/240 V 50/60 Hz, SH/UV

Power Cord (linecord) for monitor and system unit

-

14F0032

1

- Arabic Countries

-

93F2365

1

- Australia

-

13F9978

1

- Belqium (Dutch)

-

13F9978

1

- Belqium (French)

-

93F2366

1

- Brazil

-

13F9978

1

- Bulgaria

-

93F2364

1

- Canada (English)

-

93F2364

1

- Canada (French)

-

13F9978

1

- Czech Republic

-

13F9996

1

- Denmark

-

13F9978

1

- Finland

-

13F9978

1

- France

-

13F9978

1

- Germany

-

13F9978

1

- Greece

-

13F9978

1

- Hungary

-

14F0086

1

- Israel

-

14F0086

1

- Italy

-

93F2366

1

- Latin America (Spanish)

-

13F9978

1

- Netherlands

-

93F2365

1

- New Zealand

-

13F9978

1

- Norway

-

13F9978

1

- Poland

-

13F9978

1

- Portugal

-

13F9978

1

- Romania

-

13F9978

1

- Russia

-

13F9978

1

- Serbia

-

13F9978

1

- Slovakia

-

14F0014

1

- South Africa

-

13F9978

1

- Spain

-

13F9978

1

- Sweden

-

14F0050

1

- Switerland (French)

-

14F0050

1

- Switerland (German)

-

14F0050

1

- Switerland (Italian)

-

13F9978

1

- Turkey

-

14F0032

1

- UK/Ireland

-

93F2364

1

- U.S.

-

13F9978

1

- Yugoslavia/Latvia

Power cords for the following countries are controlled in those countries.

Bangladesh, Brunei, China, Hong Kong, Indonesia, Macau, Malayasia, Myanmar, Philippines, Singapore,
Sri Lanka, Thailand.
