Service Hints & Tips |
Document ID: BMOE-3YFPNV |
TP 600/E - 1080 Speakers Removal
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.
Battery Pack (1030)
Hard Disk Drive (1040)
CD-ROM Drive or Diskette Drive (1050)
Keyboard Assembly (1060)

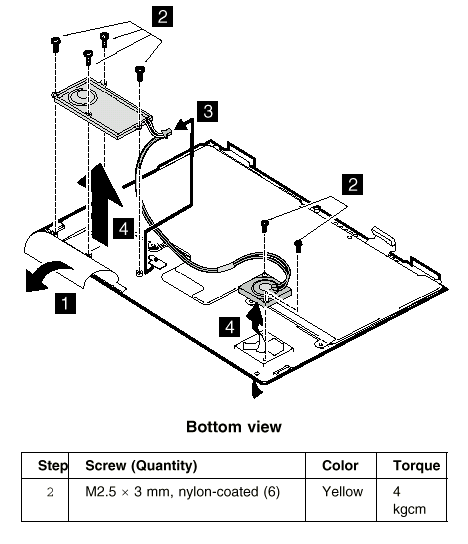

Note: In step 1 , remove the insulator on the left speaker.

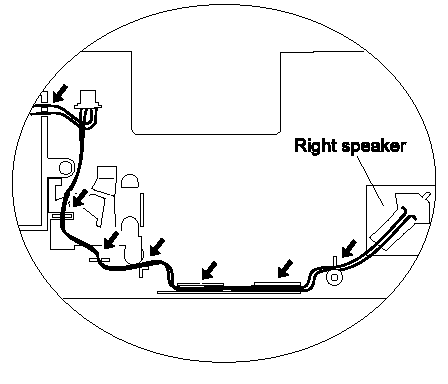

Cable routing:
When replacing the right speaker, see the following artwork for its cable routing.
|
