Parts Information |
Document ID: DDSE-458KZC |
PC Server 320 - System Board Diagram and Jumpers
Applicable to: World-Wide

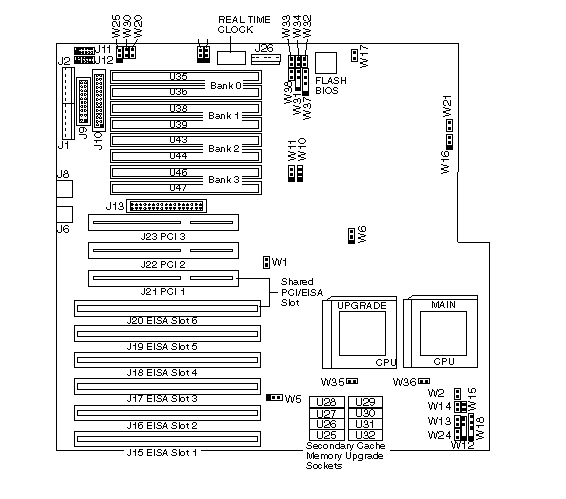

System Board
Jumpers
|
Jumper |
Description |
Setting |
|
W1 |
L1 Cache Mode |
Open - L1 Write-Back (Default) |
|
W2 |
Reserved |
Open |
|
W5 |
L2 Cache Size |
Pins 1-2 - L2 Cache Size = 256K (Default) Pins 2-3 - L2 Cache Size = 512K |
|
W6 |
CPU Clock |
Pins 1-2 Pentium 60/90MHz Pins 2-3 Pentium 66/100MHz |
|
W10 |
L2 Cache Size |
Pins 1-2 - L2 Cache Size = 256K (Default) |
|
W16 |
Reserved |
Pins 1-2 (Default) |
|
W17 |
Reserved |
Closed (Default) |
|
W20 |
Monitor Selection |
Open - Monochrome Monitor Setting |
|
W21 |
Reserved |
Open - AT Style Keyboard Closed - PS/2 Style Keyboard and Mouse (Default) |
|
W22 |
Reserved |
Open (Default) |
|
W23 |
Reserved |
Open (Default) |
|
W25 |
ISQ IDE IRQ Select |
Pins 1-2 - ISA IDE using IRQ 14 Primary IDE Controller (Default) Pins 2-3 - ISA IDE using IRQ 15 Secondary Controller |
|
W30 |
Reserved |
Open (Default) |
|
