PC Server 325 - General checkout
Applicable to: World-Wide

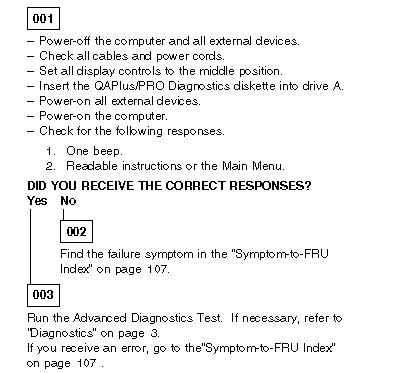

General Checkout:
This general checkout procedure is for computers that are supported by the QAPlus/PRO Diagnostics test. Diagnostic error messages appear when a test program finds a problem with a hardware option. For the test programs to properly determine if a test Passed, Failed , or Aborted , the test programs check the error-return code at test completion. (See "Return Codes".)
General error messages appear if a problem or conflict is found by an application program, the operating system, or both. For an explanation of these messages, refer to the information supplied with that software package.
Notes:
1. If multiple error codes are displayed, diagnose the first error code displayed.
2. If the computer reports a POST error, go to the "Symptom-to-FRU Index".
3. If the computer hangs and no error is displayed, go to "Undetermined Problems".
4. If a device cannot be selected from the Module Test menu, that device might be defective.
|
