Parts Information

Document ID: GSMH-3ANE4G

Aptiva - 2168 (SL-I) System unit interior service parts

Applicable to: World-Wide

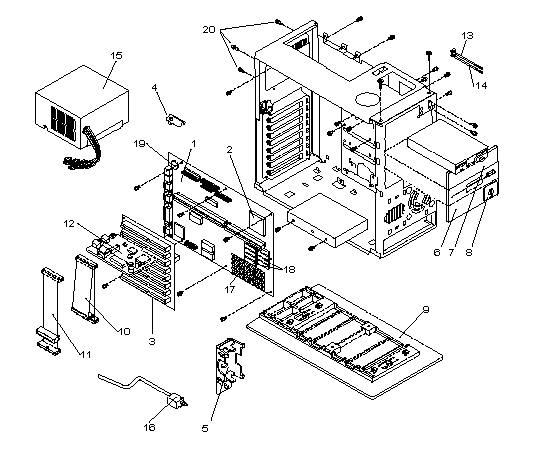

Machine Type 2168 System Unit - Interior (SL-I):

Asm -
Index

Part
Number

Units

Description

4-1

System Boards

Note:
See the Appendix
'Model/Monitor Configurations and FRU Part Numbers' for model
specifications.

All system board FRUs are shipped without processor,
cache memory modules, video DRAM modules, or SIMMs. When upgrading or replacing a
system board , any non-failing FRUs must be removed from the original system board and
reinstalled on the new FRU system board.

-1

11H9669

1

System Board Type I -2

-2

06H7589

1

P54-75MHz Processor

-2

06H6063

1

P54C-100MHz Processor

-2

42H0378

1

P54C-120MHz Processor

-2

06H8228

1

P54C-133MHz Processor

-2

06H9892

1

P54C-150MHz Processor

-2

07H0971

1

P54C-166MHz Processor

-NS

06H1796

1

Processor Fan

-3

11H8453

1

Riser Card, (ISA/PCI)

-3

10H3151

1

Riser Card, (8 - Connector AT)

-5

34G1870

1

Adapter Card Front Support

-6

42H0344

1

3.5-in. Bay Blank Panel

-7

42H0345

1

5.25-in. Bay Blank Panel

-8

42H0347

1

Blank Audio Panel

-9

34G1861

1

Base Assembly

-10

93F2394

1

Hard Disk Drive Ribbon Cable

-11

93F2395

1

Diskette Drive Ribbon Cable

-12

Factory-Installed Modems For MWave Card.

-NS

04H5783

1

Data/FAX/Modem Adapter Card (2400 bps/9600 bps/4800 bps)

-NS

04H5788

1

Data/FAX/Modem Adapter Card (14400 bps)

-12

04H5773

1

Modem Data /FAX/Voice
Adapter Card (14400 bps)

-NS

04H5934

1

14.4KHz Modem Wake Up on Ring
cable

-NS

41H7819

1

28.8KHz MWave Wake Up on Ring
cable

-NS

41H7820

1

Modem Splitter

-NS

10H3199

1

FAX/Voice modem sound cable (U.S.)

-13

93F2388

1

Indicator LED and Cable, Hard
Drive

-14

93F2389

1

Indicator LED and Cable, Power

-NS

13H8078

1

Dual LED Indicator Cable

-15

06H2973

1

Power Supply (3.3Vdc)
(145-W LV/HV
Switch-selectable)

-15

42H2380

1

Power Supply (3.3Vdc) EMEA Only
(145-W LV/HV Switch-selectable)

-16

60G2258

1

Power Switch to System Board Cable

-17

92G7540

1

SIMM, 4MB, 72-Pin Gold

-17

92G7542

1

SIMM, 8MB, 72-Pin Gold

-10

07H0974

1

SIMM EDO, 4MB, 72-Pin Gold

-10

07H0975

1

SIMM EDO, 8MB, 72-Pin Gold

-18

42H0393

1

Cache Memory kit, TypeI -2 256KB (1 cache module)

-NS

41H9638

1

Video Memory Module, Type I -2 512KB DRAM

-19

93F0063

1

Lithium Battery (CR2032)

-NS

93F0067

1

Jumper, 2 position (Packet of 4)

-20

93F0041

1

Packet (Mounting Screws)

-NS

60G1995

1

Packet (Cover Mounting Screws)
