Netfinity 5000 - System Parts Listing
Applicable to: World-Wide
|
Index |

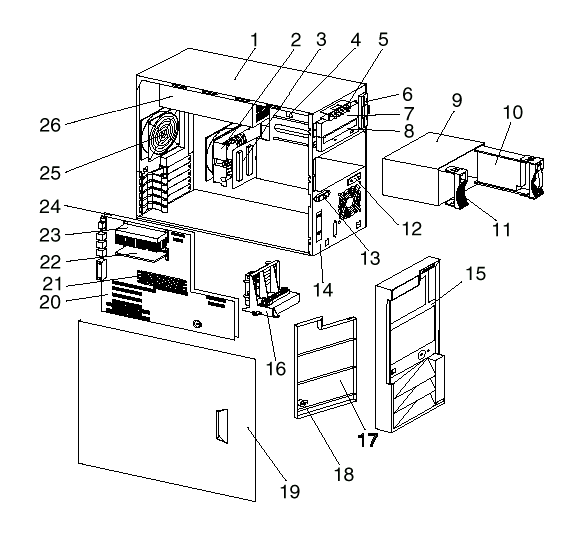

System (Netfinity 5000 - Type 8659) Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY |
FRU No. |
|
1 |
L Cover Complete (Tower Models 12Y, 22Y, 31Y, 41Y) |
61H0263 |
|
2 |
Fan Housing (Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
20L1294 |
|
3 |
Hot Swap Backplane Assembly (Tower Models 12Y, 22Y, 31Y, 41Y) |
61H3249 (replaces 20L1435) |
|
3 |
Hot Swap Backplane Assembly (Rack Models 1SY, 2SY, 3RY, 4RY) |
61H3248 (replaces 20L1434) |
|
4 |
Bezel Latch (Tower Models 12Y, 22Y, 31Y, 41Y) |
20L1293 |
|
5 |
Internal LED Card Assembly(Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
61H0344 |
|
6 |
1.44 MB Diskette Drive (Gray)(Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
76H4091 |
|
7 |
5.25 Blank Bezel Assembly(Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
12J3073 |
|
8 |
32X CD-ROM Drive (Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
02K3414 |
|
9 |
5 Pack Cage Assembly (Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
61H0290 |
|
10 |
Fixed Disk Drive (Option only)(Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
N/A |
|
11 |
Hot Swap Bezel Filler Assembly(Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
20L1447 |
|
12 |
Power and Reset Switches Cable(Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
61H0299 |
|
13 |
Cover Latch (Tower Models 12Y, 22Y, 31Y, 41Y) |
20L1290 |
|
14 |
Base Assembly (Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
61H0292 |
|
15 |
Front Bezel Assembly (Tower Models 12Y, 22Y, 31Y, 41Y) |
61H0269 |
|
15 |
Front Bezel Assembly (Rack Models 1SY, 2SY, 3RY, 4RY) |
61H0343 |
|
16 |
Option Card Support Assembly(Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
20L1295 |
|
17 |
Door Assembly (Tower Models 12Y, 22Y, 31Y, 41Y) |
61H0278 |
|
18 |
Keylock Assembly (Tower Models 12Y, 22Y, 31Y, 41Y) |
20L1264 |
|
19 |
Cover Assembly (Rack Models 1SY, 2SY, 3RY, 4RY) |
61H0348 |
|
20 |
System Board without Memory, Processor, or Cache (Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY) |
61H2737 |
|
20 |
System Board without Memory, Processor, or Cache (Rack/Tower Models 41Y, 4RY) |
61H2737 |
|
21 |
64 MB DIMM SD Registered(Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY) |
61H0088 |
|
21 |
128 MB R-DIMM (Rack/Tower Models 41Y, 4RY; Optional on all other models) |
28L1015 |
|
21 |
256 MB R-DIMM (Option only)(Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
01K7391 |
|
22 |
Terminator Card (Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
36L9420 (replaces 61H0539) |
|
23 |
350 MHz/100 Processor (Tower Model 12Y) |
02K2776 |
|
23 |
400 MHz/100 Processor (Tower Model 22Y) |
20L1430 |
|
23 |
450 MHz/100 Processor (Rack/Tower Models 31Y, 3RY) |
37L5842 (replaces 01K1578) |
|
23 |
500 MHz/100 Processor (Rack/Tower Models 41Y, 4RY) |
33L1615 |
|
24 |
Planar Backplate (Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
11L2398 |
|
25 |
Rear Fan Assembly with Bracket (Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
20L1397 |
|
26 |
Power Supply 350 Watt (Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
01K9862 |
|
|
2-Drop SCSI Controller to Hot-Swap Backplane Cable (Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
61H0310 |
|
|
5.25 DASD Slide Bracket(Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
12J5681 |
|
|
Battery (Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
33F8354 |
|
|
CD-ROM IDE Cable (Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
61H0314 |
|
|
Chassis Assembly (Tower Models 12Y, 22Y, 31Y, 41Y) |
61H0312 |
|
|
Chassis Assembly (Rack Models 1SY, 2SY, 3RY, 4RY) |
61H0324 |
|
|
Chassis Cover Plate (Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
20L1450 |
|
|
Diskette Drive Cable (Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
61H0308 |
|
|
Diskette Drive Holder Bracket(Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
12J3065 |
|
|
EMC Shield (Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
61H0255 |
|
|
Foot, 4 each (Tower Models 12Y, 22Y, 31Y, 41Y) |
61H0294 |
|
|
I/O Bracket Clip (Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
61H0261 |
|
|
Keyboard (Gray) (Tower Models 12Y, 22Y, 31Y, 41Y) |
See |
|
|
LED Cable Assembly (Rack Models 1SY, 2SY, 3RY, 4RY) |
11L1358 |
|
|
LED Cable Assembly(Tower Models 12Y, 22Y, 31Y, 41Y) |
61H0316 |
|
|
LED Spacer Assembly Bracket (Tower Models 12Y, 22Y, 31Y, 41Y) |
20L1291 |
|
|
Miscellaneous Parts Kit (Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
61H0359 |
|
|
Molding, Cable Duct(Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
61H0353 |
|
|
Mouse (Tower Models 12Y, 22Y, 31Y, 41Y) |
76H0889 |
|
|
Power Cord (Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
6952301 |
|
|
Power Supply 175 Watt Plug In (Option only) (Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
36L8845 (replaces 01K9864) |
|
|
Processor Handle Adapter (Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
33L4320 |
|
|
Rack Mount Bracket (Rack Models 1SY, 2SY, 3RY, 4RY) |
20L1292 |
|
|
Real Time Clock (Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
20L1271 |
|
|
Service Label (Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
61H3252 (replaces 11L2393) |
|
|
SCSI Controller to SCSI Device 2-Drop Cable (Option only) (Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
11L2363 |
|
|
Slide/Bracket Assembly(Rack Models 1SY, 2SY, 3RY, 4RY) |
20L1448 |
|
|
Rear Bracket for Cable (Rack Models 1SY, 2SY, 3RY, 4RY) |
20L1449 |
|
|
URM S-1 Goalpost (Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
33L4520 |
|
|
Voltage Regulator Module (Rack/Tower Models 12Y, 1SY, 22Y, 2SY, 31Y, 3RY, 41Y, 4RY) |
01K7113 |
|
