TP SelectaDock I - Front and rear views
Applicable to: World-Wide

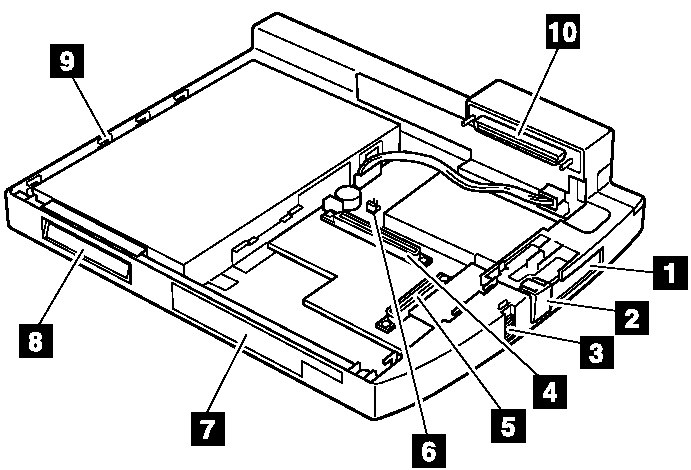

Front View
|
1 |
PCMCIA Slot |
|
2 |
PC Card Lock Slide |
|
3 |
SelectaDock Base Model I Lock |
|
4 |
UltraBay Connector 1 |
|
5 |
UltraBay Connector 2 |
|
6 |
Feature Jumper |
|
7 |
Blank Bezel |
|
8 |
Status Indicator |
|
9 |
Docking Guide |
|
10 |
Docking Connector |

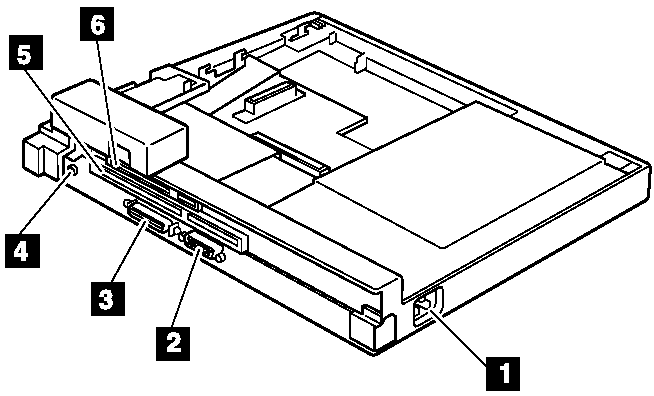

Rear View
|
1 |
Power Connector |
|
2 |
MIDI/Joystick Jack |
|
3 |
SCSI Connector |
|
4 |
Line-Out Jack |
|
5 |
ISA Adapter Card Slot |
|
6 |
PCI Adapter Card Slot |
|
