15.628 bytes |
Parts Information |
Document ID: COBN-3GCCYZ |
Aptiva - 2162 Keyboard & mouse service parts
Applicable to: World-Wide
|
Asm- |
Part |
Units |
Description |
|

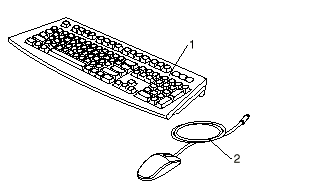

7-1 |
1 |
Keyboard | |
|
-1 |
76H0905 |
1 |
- Belgium/Dutch |
|
-1 |
76H0904 |
1 |
- Belgium/French |
|
-1 |
76H0902 |
1 |
- Brazil/Portugal |
|
-1 |
76H0908 |
1 |
- Denmark |
|
-1 |
76H0910 |
1 |
- France |
|
-1 |
76H0911 |
1 |
- Germany |
|
-1 |
76H0916 |
1 |
- Italy |
|
-1 |
76H0933 |
1 |
- Japan (109-key) |
|
-1 |
76H0900 |
1 |
- Latin America |
|
-1 |
76H0909 |
1 |
- Netherlands |
|
-1 |
76H0917 |
1 |
- Norway |
|
-1 |
76H0919 |
1 |
- Portugal |
|
-1 |
76H0925 |
1 |
- Spain |
|
-1 |
76H0926 |
1 |
- Sweden/Finland |
|
-1 |
76H0927 |
1 |
- Switzerland-French/German |
|
-1 |
76H0930 |
1 |
- UK English |
|
-1 |
76H0896 |
1 |
- U.S./Canada |
|
-1 |
76H0896 |
1 |
- U.S. English (ISO 9995 Compliant) |
|
-2 |
76H0889 |
1 |
Mouse |
|
-NS |
76H0893 |
1 |
Ball and Clip for Mouse |
|
-NS |
76H0890 |
1 |
Mouse Selector (Cordless) |
|
-NS |
76H0891 |
1 |
Mouse Receiver (Cordless) |
|
-NS |
76H6955 |
1 |
Mouse Emitter (Cordless) |
|
-NS |
76H6957 |
1 |
Mouse Receiver (Cordless) |
|
-NS |
76H0892 |
1 |
Ball and Clip for Mouse (Cordless) |
|
-NS |
76H1572 |
1 |
Joystick |
|
Search Keywords |
| |
|
Document Category |
Service Parts | |
|
Date Created |
21-04-97 | |
|
Last Updated |
07-04-99 | |
|
Revision Date |
07-04-2000 | |
|
Brand |
IBM Aptiva | |
|
Product Family |
Aptiva | |
|
Machine Type |
2162 | |
|
Model |
all | |
|
