Parts Information

Document ID: MCGN-44JRJS

ServeRAID - Locations

Applicable to: World-Wide

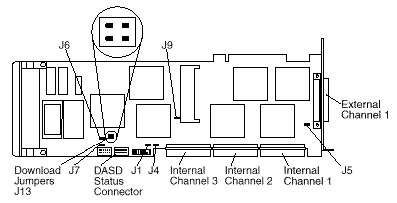

Locations (IBM PC ServeRAID Adapter)

(FRU no. 76H3587)

Download Jumper Locations:

• J13 consists of 4 pins that accept 2 jumper blocks.
• Install jumper blocks as follows (with respect to the card layout above) to enable Download via Bootlock.
  Note: This procedure is only needed if a download by code block does not work.

• The Default position is to have no jumper blocks installed.
