Parts Information |
Document ID: JBAR-3V9QZY |

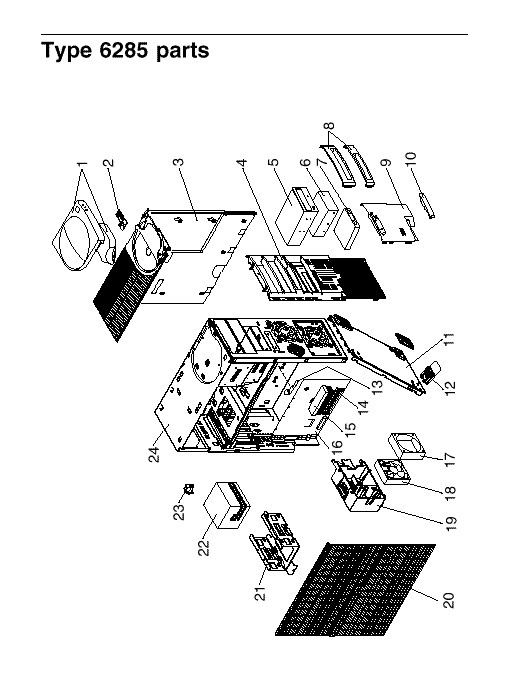

IBM PC300GL (Type 6285) - Parts diagram/FRU listing
Applicable to: World-Wide
|
|
Parts listing | |
|
Index |
System (Type 6285) |
FRU No. |
|
1 |
Cover and Handle |
12J4494 |
|
2 |
Power Switch/LED Cable Assembly |
12J4510 |
|
3 |
Top Cover Assembly |
12J4509 |
|
4 |
Front Bezel |
12J4495 |
|
|
(Order either 32X Max CD-ROM drives) | |
|
5 |
CD-ROM (32X Max) |
02K1115 |
|
5 |
CD-ROM (32X Max) |
02K3412 |
|
|
CD-ROM Audio Cable |
75H9219 |
|
6 |
3.2 GB EIDE Hard Disk Drive |
10L6006 |
|
6 |
4.2 GB EIDE Hard Disk Drive |
36L8675 |
|
6 |
6.4 GB EIDE Hard Disk Drive |
10L6012 |
|
6 |
8.4 GB EIDE Hard Disk Drive |
36L8679 |
|
|
Hard Disk Cable, EIDE |
12J4518 |
|
7 |
1.44 MB, 3.5-Inch Diskette Drive |
75H9550 |
|
7 |
1.44 MB, 3.5-Inch Diskette Drive-Japan |
75H9552 |
|
|
Diskette Drive Cable |
76H7340 |
|
8 |
Louver Blank Bezels |
12J4497 |
|
|
Miscellaneous Optional Bezels |
12J4498 |
|
9 |
3.5-inch Front Panel |
01K1854 |
|
10 |
Model Plate |
02K2832 |
|
11 |
Bottom cover |
03K9602 |
|
12 |
Foot (4) |
12J6294 |
|
13 |
System Board Latch and Screw |
01K1612 |
|
14 |
Memory - 32 MB DIMM, Non-Parity |
01K1146 |
|
14 |
Memory - 64 MB DIMM, Non-Parity |
01K1147 |
|
15 |
Intel Celeron Processor 300 MHz, 128KB cache |
28L5017 |
|
15 |
Intel Celeron Processor 366 MHz, 128KB cache |
33L2867 |
|
15 |
Processor Pentium II 300 MHz |
01K4291 |
|
15 |
Intel Celeron Processor 333 MHz, 128KB cache |
01K4447 |
|
15 |
Processor Pentium II 333 MHz ECC |
01K4390 |
|
15 |
Processor Pentium II 350 MHz |
01K2175 |
|
15 |
Processor Pentium II 400 MHz |
01K4334 |
|
15 |
Processor Pentium II 450 MHz |
01K1578 |
|
15 |
Processor Pentium III 450 MHz |
33L1614 |
|
15 |
Processor Pentium III 500 MHz |
33L1615 |
|
16 |
System Board (no proc., memory, rails) |
61H1072 |
|
16 |
System Board (no processor, memory, rails) - (for Intel Celeron processors) |
61H1061 |
|
16 |
System Board (no processor, memory, rails) - (for Intel Pentium III processors) |
61H2347 |
|
|
System Board Rail Set |
03K9626 |
|
17 |
Fan Bracket |
03K9606 |
|
18 |
92 mm Fan with rubber mounts |
02K2861 |
|
Fan/Bracket kit (includes 92 mm Fan and fan bracket) |
37L3062 | |
|
19 |
Card Guide |
03K9605 |
|
20 |
Access Cover Assembly |
12J4493 |
|
21 |
Hard Disk Drive Bracket |
03K9608 |
|
22 |
Power Supply (200W) |
75H8991 |
|
22 |
Power Supply (200W) - Japan |
76H4873 |
|
23 |
Keylock Assembly |
12J5102 |
|
24 |
Base Frame Assembly |
03K9611 |
|
|
Cable - Audio/CDROM |
75H9219 |
|
|
Cable - Wake On Ring |
76H7345 |
|
