Parts Information

Document ID: MCGN-3RNNJH

PC Server 325 - System Parts Listing
(8639 - PB0, PT0, PTW, RB0, 1RY, 2RY, AAB, CM0, Zxx)

Applicable to: World-Wide

System
Index

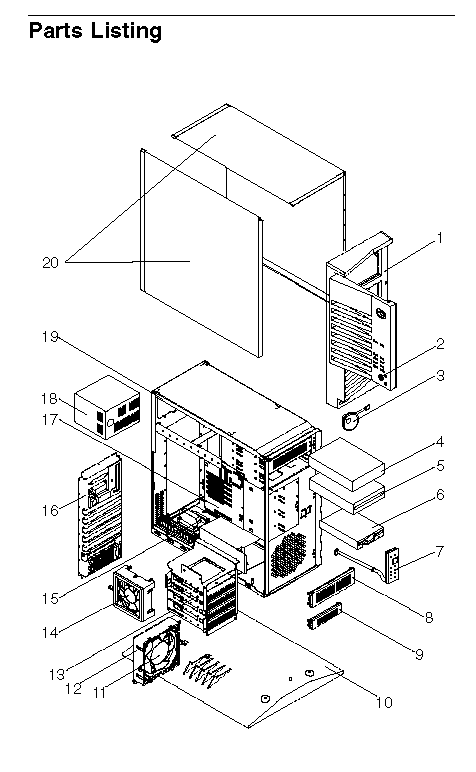

System (PC Server 325 - Type 8639)
Models 1RY, 2RY, PB0, PT0, PTW,
and RB0

Current FRU

Previous FRU

1

Front Bezel/Door Assembly
(Models PB0, PT0, PTW)

55H8166

.

2

Keylock with Keys
(Models 1RY, 2RY, PB0, PT0, PTW, RB0)

33F8433

.

3

Speaker
(Models 1RY, 2RY, PB0, PT0, PTW, RB0)

76H3473

.

4

4 GB (See footnote 2 below) Hard Disk Drive (Model PTW)

76H2697

.

5

MKE CR-504 8X SCSI CD-ROM Drive
(Models PB0, PT0, PTW, RB0)
See CD-ROM Replacement.

73H2601

.

5

12X SCSI CD-ROM Drive
(Models 1RY, 2RY)

93H8055

.

6

1.44MB Diskette Drive
(Models PB0, PT0, PTW)

93F2361

.

6

1.44MB Gray Diskette Drive
(Model 1RY, 2RY, RB0)

76H4091

.

7

LED/On/Off Switch Cable Assembly
(Models PB0, PT0, PTW)

55H8168

.

7

LED/On/Off Switch Cable Assembly
(Model 1RY, 2RY, RB0)

72H2649

.

8

5.25-Inch Blank Vented Bezel
(Models PB0, PT0, PTW)

71G0771

.

8

5.25-Inch Blank Gray Vented Bezel
(Model 1RY, 2RY, RB0)

76H3451

.

9

3.5-Inch Blank Vented Bezel
(Models PB0, PT0, PTW)

55H8174

.

9

3.5-Inch Blank Gray Vented Bezel
(Model 1RY, 2RY, RB0)

76H3449

.

10

Pedestal (Models PB0, PT0, PTW)

96G2412

.

11

Fan Assembly 120 MM with Connector
(Models 1RY, 2RY)

11L2341

.

11

Fan Assembly 120 MM with Connector
(Models PB0, PT0, PTW, RB0)

11L2341

76H3447

12

Card Guide
(Models 1RY, 2RY, PB0, PT0, PTW, RB0)

60H9295

.

13

DASD 5-Drive Cage Assembly
(Models 1RY, 2RY, PB0, PT0, PTW, RB0)

60H9290

.

14

Fan Assembly 92 MM with Connector
(Models 1RY, 2RY, PB0, PT0, PTW, RB0)

06H2647

.

15

Microprocessor Card without Microprocessor
(Models 1RY, 2RY, PB0, PT0, PTW, RB0)

12J2681

.

16

Shadow Box
(Models 1RY, 2RY, PB0, PT0, PTW, RB0)

60H8228

.

17

System Board without Memory and
Microprocessor
(Models 1RY, 2RY, PB0, PT0, PTW, RB0)

61H1047

60H8097

18

250W Power Supply Assembly
(Models PT0 and PTW)

40H7563

.

18

250W Power Supply Assembly with PFC (Models 1RY, 2RY, PB0, RB0)

40H7566

.

18

250W Power Supply Assembly with
PFC (Models 1RY, 2RY, PB0, RB0)

40H7566

01K9860

19

Base Frame Assembly (Models PB0,
PT0, PTW)

60H9305

.

19

Base Frame Assembly (Model 1RY,
2RY ,RB0)

60H9309

.

20

Cover Assembly (Models PB0, PT0,
PTW)

60H9306

.

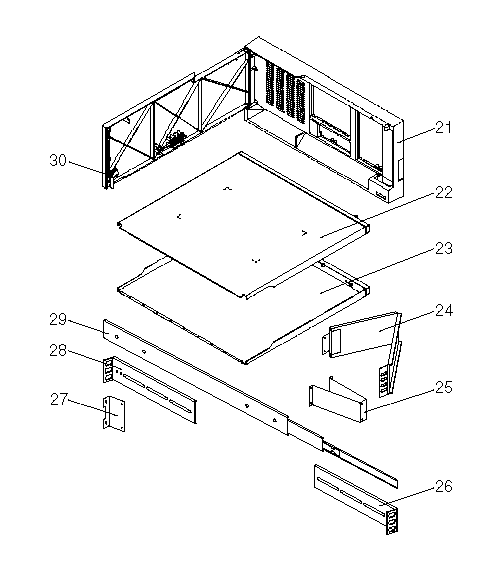

21

Front Bezel/Door Assembly (Model
1RY, 2RY ,RB0)

72H2647

.

22

Cover Assembly Rack (Model 1RY,
2RY, RB0)

60H9324

.

23

Cover Assembly Rack (Model RB0)

60H9324

.

24

Cable Management Arm (Model 1RY, 2RY, RB0)

72H2657

.

25

Cable Management Arm Bracket
(Model 1RY, 2RY, RB0)

72H2674

.

26

Slide Management Bracket (Model
1RY, 2RY, RB0)

72H2655

.

27

Chassis Drawer Bracket (Model 1RY,
2RY, RB0)

72H2676

.

28

Slide Management Bracket (Model
RB0)

72H2655

.

29

Rack Slides 21-Inch (Model 1RY, 2RY, RB0)

72H2653

.

5.25/3.5-Inch Tray Adapter (Models 1RY, 2RY, PB0, PT0, PTW, RB0)

60H9688

.

8 MM EMC Shield (Models 1RY, 2RY ,PB0, PT0, PTW, RB0)

72H2666

.

8 MM Black Blank Bezel (Models 1RY, 2RY)

72H3461

.

8 MM Gray Blank Bezel (Model RB0)

76H3461

.

8 MM White Blank Bezel (Models PB0, PT0, PTW)

72H2668

.

32 MB ECC 3.3v Buffered DIMM (Models PT0, PTW)

12J4121

.

64 MB ECC 3.3v Buffered DIMM
(Models 1RY, 2RY, PB0, RB0)

12J4122

.

128 MB ECC 3.3V Buffered DIMM (Option)

76H0656

.

256 MB ECC 3.3V Buffered DIMM (Option)

12J4123

.

Air Baffle (Models 1RY, 2RY,PB0, PT0, PTW, RB0)

01K7067

.

C2 Cable Cover (Option, when available - Models PB0, PT0, PTW)

55H8188

.

C2 Security Cable (Option, when available - Models PB0, PT0, PTW)

76H0206

.

CD-ROM 16/8 Bit SCSI Converter (Models PB0, PT0, PTW, RB0)

92F0324

.

Diskette Cage Assembly (Models 1RY,
2RY, PB0, PT0, PTW, RB0)

60H9292

.

Diskette Drive Signal Cable with Power
(Models 1RY, 2RY, PB0, PT0, PTW, RB0)

06H6344

.

Door Hinge (Models PB0, PT0, PTW)

55H8186

.

Fan Assembly 40 MM with Connector (Models 1RY, 2RY, PB0, PT0, PTW, RB0)

60H9687

.

Keyboard with Cable (Models PB0, PT0, PTW, RB0) See "Keyboards (101/102 Key)"

.

Lithium Coin Cell Battery (Models 1RY, 2RY, PB0, PT0, PTW, RB0) See "Lithium Battery Notice" before replacing this FRU

33F8354

.

Logo - Blue (Models 1RY, 2RY)

75H3459

.

Logo - Blue (Model RB0)

76H3459

.

Logo - Gray (Models PB0, PT0, PTW)

12J5687

.

Microprocessor Card Tray (Models
1RY, 2RY, PB0, PT0, PTW, RB0)

60H9816

.

Miscellaneous Parts Kit (Models PB0, PT0, PTW)
32X5/16-Inch Screws (6 each)
EMC Contact
EMC Ground Contacts (4 each)
I/O Blank
FEM-Nut 4-40 Screws (2 each)
Floppy M3 Screws (2 each)
Hard File 6-32 Screws (2 each)
PL M3X8 HEX Screws (3 each)
System Board Edge Support
Power Switch Bracket

55H8179

.

Miscellaneous Parts Kit (Model 1RY, 2RY, RB0)
8/32-Inch Screws (21 each)
8/32 Nuts (5 each)
#8 Lockwashers (5 each)
10/32 Bar Nuts (5 each)
10X32X0.5-Inch Screws (13 each)
10X32X1.0-Inch Screws (3 each)
Floating Nuts (3 each)

76H3486

.

Mouse (Models PB0, PT0, PTW)

06H4595

.

233 MHz Microprocessor Chip with 512K Cache and Heat Sink (Models PT0, PTW)

12J2700

.

266 MHz Microprocessor Chip with 512K Cache and Heat Sink (Models PB0, RB0)

01K2169

01K2169 substituted to 12J2703 substituted back to 01K2169

300 MHz Microprocessor Chip with 512K Cache and Heat Sink (Models 1RY)

11L1808

.

333 MHz Microprocessor Chip with 512K Cache and Heat Sink (Models 2RY)

01K4327

.

Parallel Data Cable (Models 1RY, 2RY, PB0, PT0, PTW, RB0)

61H0036

.

Power Cord (Models PB0, PT0, PTW, RB0)
See "Power Cords"

.

.

PC Server 325 Label (Models 1RY, 2RY, PB0, PT0, PTW, RB0)

75H8325

.

PC Service Label (Models PB0, PT0, PTW, RB0)

60H9322

.

PC Service Label (Models 1RY, 2RY)

11L2352

.

Power Extension Cable (Models 1RY,
2RY, PB0, PT0, PTW, RB0)

60H9319

.

Rear Bezel Tower (Option - Models PB0, PT0, PTW)

60H9817

.

SCSI Hard Disk Drive Cable (7X) with
Terminator (Models 1RY, 2RY, PB0, PT0, PTW, RB0)

11L1356

.

SCSI Short Cable to I/O Casting (Models 1RY, 2RY, PB0, PT0, PTW,RB0)

55H8190

.

SCSI Terminator Card (Models 1RY, 2RY)

92F0322

.

Serial Cable (Models 1RY, 2RY, PB0, PT0, PTW, RB0)

61H0034

.

Service Processor Adapter (Model 2RY)

12J4743

.

Terminator Card - in place of second
microprocessor (Models 1RY, 2RY, PB0, PT0, PTW, RB0)

36L9420

12J2701

Voltage Regulator (Models 1RY, 2RY, PB0, PT0, PTW, RB0)

12J2699

.

_____________________________
(2) When referring to hard-disk-drive capacity, GB means 1 000 000 000 bytes; total user-accessible capacity may vary
depending on operating environment.
