Service Hints & Tips |
Document ID: GSMH-3BCLFL |
TP 355,360,370,750,755C/CS - System Board Top View
Applicable to: World-Wide

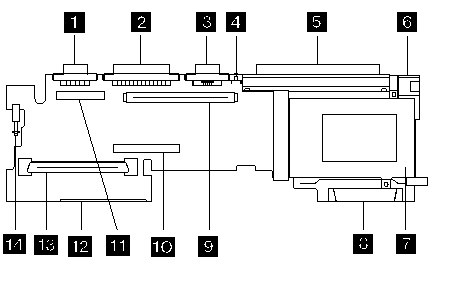

System Board (Top View):
1. Power Switch
2. Modem Card Connector (355x, 360x)
3. Serial Connector
4. Audio Card Connector
5. Speaker Connector (370C only)
6. Parallel Connector
7. Interposer Card Connector
8. External Display Connector
9. Reset Push button
10. System Expansion Connector
Note:
Model 355x does not have this connector.
11. External Input Device Connector
12. Hard Disk Drive Connector
13. PCMCIA Slot
14. DC/DC Card Connector
15. IC DRAM Card Connector
16. Diskette Drive Connector
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
12-11-96 | |
|
Last Updated |
19-08-98 | |
|
Revision Date |
18-08-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 355, ThinkPad 360, ThinkPad 370, ThinkPad 750, ThinkPad 755C/CS | |
|
Machine Type |
2619, 2620, 2624, 9545 | |
|
Model |
Various | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
N/A | |
|
