TP 390,390E,1720 - Planar Board Removal

Applicable to: World-Wide

The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

Battery ASM
Hard Disk Drive
Combo Bay
Keyboard
LED Board
Upper Heatsink
CPU Board
LCD Panel ASM
Upper Cover ASM
IMM Lower Heatsink ASM
Fan ASM
Power Latch, IR Board, and DC-DC & BATT Board

Note: See "Replacing the System Board" before proceeding.

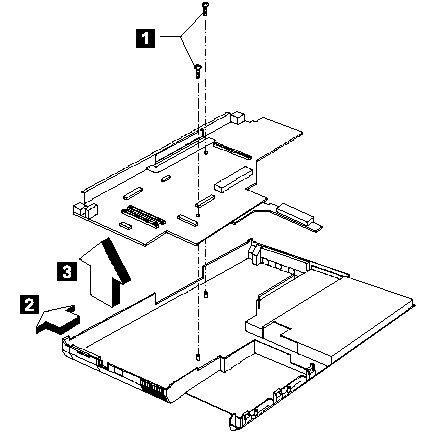

Remove the two screws from the planar board and gently remove the planar board from the base cover ASM.

Step

Size (Quantity)

Head &
Color

Torque

1

M2.5 x 6L (2)

Pan head,
black

3.2 kgf-cm

Note: Make sure you use the correct screw for replacement.
