Service Hints & Tips |
Document ID: JBAR-46HR5N |
IBM PC360 - Supported memory configurations
Applicable to: World-Wide
PC 360-S150 Series (Type 6598) - Pentium Pro 150/200 MHz:

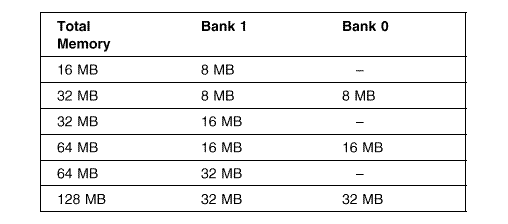

These are the recommended combinations of memory-module kits. Each bank must contain a matched pair of SIMMs having the same size and speed.
Important:
If all four banks are populated, all memory SIMMs must be the same size and speed.
Search Keywords |
| |
Hint Category |
Memory, Hardware Maintenance Information | |
Date Created |
31-03-99 | |
Last Updated |
02-04-99 | |
Revision Date |
31-03-2000 | |
Brand |
IBM PC | |
Product Family |
PC 360 | |
Machine Type |
6598 | |
Model |
all | |
TypeModel |
| |
