Service Hints & Tips

Document ID: JBAR-46HRCC

IBM PC365 - Supported memory configurations

Applicable to: World-Wide

PC 365 Series (Type 6589) - Pentium Pro 180/200 MHz:

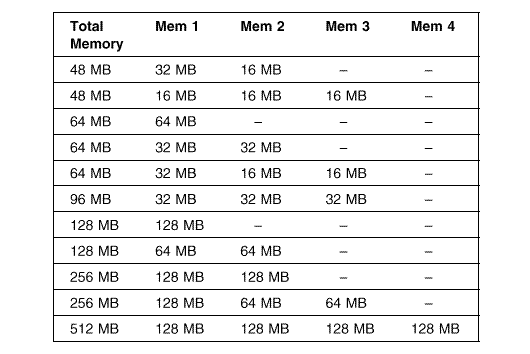

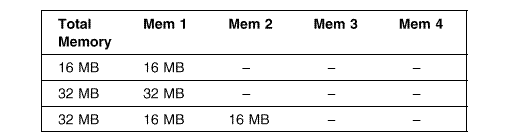

These are the recommended combinations of DIMMs. However, any combination of DIMM sizes is acceptable.

• DIMM height must not exceed 1.2 inches.
• If EDO NP (non-parity) DIMMs and EDO ECC DIMMs are mixed, they will configure as non-parity.
• Install only EDO ECC DIMMs to enable parity.

	Search Keywords
	Hint Category	Memory, Hardware Maintenance Information
	Date Created	31-03-99
	Last Updated	02-04-99
	Revision Date	31-03-2000
	Brand	IBM PC
	Product Family	PC 365
	Machine Type	6589
	Model	all
