Parts Information |
Document ID: LWIK-3YNLTX |
TP 365X/XD - LCD and keyboard FRU parts list
Applicable to: World-Wide
To determine which LCD you have (DSTN or TFT) based upon your model, click here.

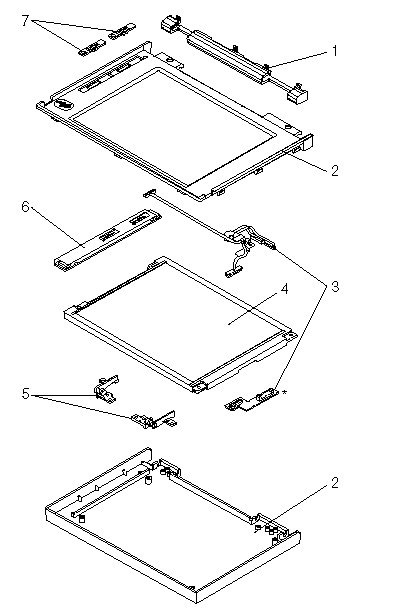

Model 365X/365XD - TFT LCD Panel:
Note:
* Parts only for the 11.3-inch TFT.
TFT LCD FRU Parts List:
10.4-inch (A) P/N 46H8093 69H7947 82H8039
10.4-inch (B) P/N 83H5349 83H5350
Notes:
1. You can distinguish the 10.4-inch TFT LCD unit (A) or (B) by the label sealed on the inside of its hinge cover assembly (1 in the parts list).
2. You can replace the entire 10.4-inch TFT LCD unit (A) with the entire LCD unit (B), or vice versa. But you cannot replace parts of (A) with parts of (B), or vice versa.
3. Model-Gxx contains only 10.4-inch (B) type.
|
System Unit |
10.4 (A) |
10.4 (A) |
10.4 (A) | |
|
1 |
Hinge Cover Assembly |
74H0617 |
74H0617 |
74H0617 |
|
2 |
LCD Cover Kit |
74H0582 |
83H5355 |
82H8165 |
|
3 |
LCD Cable Kit |
74H0627 |
83H5356 |
82H8169 |
|
4 |
LCD Unit |
74H0621 |
83H5357 |
82H8166 |
|
5 |
Hinges (Right/Left) | |||
|
6 |
Inverter Card |
69H7959 |
83H5358 |
82H8167 |
|
7 |
Slide Knob | |||
|
LCD Misc. Parts: |
74H0619 |
74H0619 |
74H0619 |

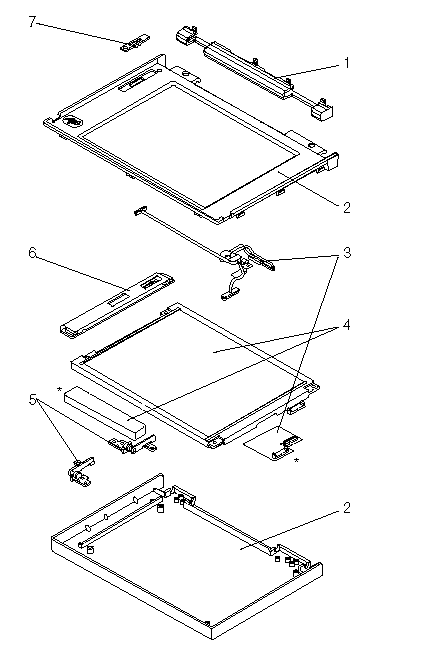

Model 365X/365XD - DSTN LCD Panel:
Note:
* Part only for the 10.4-inch LCDs.
DSTN LCD FRU Parts List:
10.4-inch DSTN LCD:
|
Index |
System Unit | |
|
1 |
Hinge Cover Assembly FDD |
74H0617 74H0618 |
|
2 |
LCD Cover Kit |
74H0581 |
|
3 |
LCD Cable Kit |
74H0626 |
|
4 |
LCD Unit |
74H0620 |
|
5 |
Hinges (Right/Left) | |
|
6 |
Inverter Card |
69H7958 |
|
7 |
Slide Knob See LCD Misc. Parts |
11.3-inch DSTN LCD:
|
Index |
System Unit | |
|
1 |
Hinge Cover Assembly FDD |
74H0617 |
|
2 |
LCD Cover Kit |
74H0583 |
|
3 |
LCD Cable Kit |
74H0628 |
|
4 |
LCD Unit |
74H0622 |
|
5 |
Hinges (Right/Left) See LCD Misc. Parts | |
|
6 |
Inverter Card |
69H7961 |
|
7 |
Slide Knob See LCD Misc. Parts |
LCD Miscellaneous Parts:
|
LCD Slide Knob, LCD Foam Support, |
74H0619 |
Keyboard Unit:
|
Arabic |
42H3936 |
|
Belgian |
42H3937 |
|
Canadian French |
42H3938 |
|
Czech |
73H7241 |
|
Danish |
42H3939 |
|
Dutch |
42H3940 |
|
French |
42H3942 |
|
German |
42H3943 |
|
Greek |
42H3944 |
|
Hungary |
73H7242 |
|
Hebrew |
42H3945 |
|
Italian |
42H3946 |
|
Japanese |
42H3947 |
|
Latin Spanish |
42H3948 |
|
Norwegian |
42H3949 |
|
Poland |
73H7243 |
|
Portuguese |
42H3950 |
|
Russian |
42H3956 |
|
Spanish |
42H3951 |
|
Slovenia /Croatia / Bosnia |
73H7244 |
|
Swedish / Finnish |
42H3941 |
|
Swiss |
75H7562 |
|
Turkish |
42H3954 |
|
U.K. English |
42H3955 |
|
U.S. English |
41H9789 |
|
