Service Hints & Tips |
Document ID: COBN-3HAK8C |

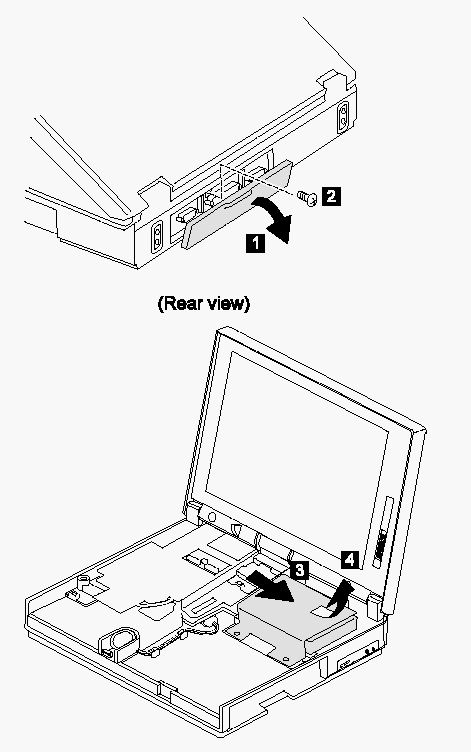

TP 380,385 - Hard disk drive removal diagram
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.

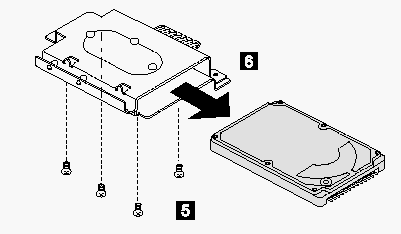

1060 Hard Disk Drive
Battery Pack (1010)
Keyboard Unit (1030)
CD-ROM/FDD Assembly (1040)
|
Step |
Location (Quantity) |
Length |
|
2 |
Base Cover (1) |
M 2.5 x 6mm |
|
5 |
Base Cover (4) |
M 2.5 x 6mm |
|
Note: When replacing, make sure you use the correct screw |
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
21-05-97 | |
|
Last Updated |
19-08-98 | |
|
Revision Date |
17-08-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 380, ThinkPad 380D, ThinkPad 380E, ThinkPad 380ED, ThinkPad 385E, ThinkPad 385ED | |
|
Machine Type |
2635 | |
|
Model |
Various | |
|
TypeModel |
| |
|
