PCServer704 - Diagrams (Bays)
Applicable to: World-Wide

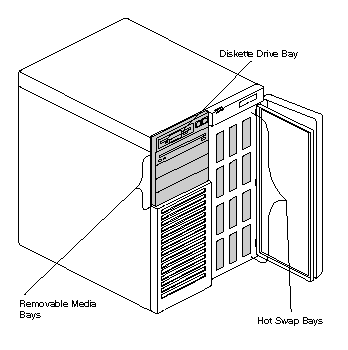

Diagram (Bays)
The server comes with one 3.5-inch, 1.44 MB Diskette drive, and a SCSI CD-ROM drive.
(1 MB equals approximately 1 000 000 bytes.) The number of preinstalled hard disk drives in the server varies according to the model.
CD-ROM Drive: All models come with a SCSI-2 CD-ROM drive.
Diskette Drive: The 3.5-inch, 1.44 MB diskette drive uses 1 MB and 2 MB diskettes.
Open Bays: Accommodates up to 12 hot-swap, 3.5-inch hard disk drives. There is additional open space in the top left bay for three removable-media drives, such as diskette or tape backup.
Hard Disk Drive: The number, capacity, and location of the hard disk drives vary, depending on your model.
|
