IBM PC330/PC350 (Type 6577, 6587) - Supported memory configurations

Applicable to: World-Wide

PC 330/350 Series (Type 6577, 6587) - Pentium 100/133/166/200 MHz:

These are the recommended combinations of memory-module kits.

• Each bank must contain a matched pair of SIMMs having the same size and speed.
• The maximum (SIMMs/DIMMs) memory supported is 192 MB.

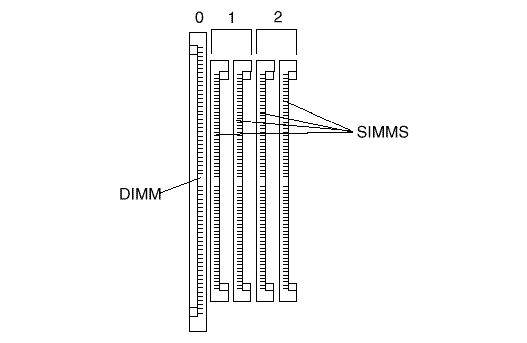

• DIMM (0) and SIMMs (1 and 2) in the following figure correspond to the memory banks (0, 1, and 2).
• Bank 0 holds DIMM memory modules.
• Bank 1 and Bank 2 hold matched-pair SIMM memory modules.
• The banks are filled according to the following memory tables.
• When installing SIMM memory, a matched-pair is first installed into Bank 1, and then into Bank 2.

Notes:

1. Industry standard 72-pin tin-lead SIMMs and 168-pin gold-lead DIMMs are supported.
2. Install only parity SIMMs/DIMMs to enable parity.
3. A mix of parity and non-parity SIMMs/DIMMs will configure as non-parity.
4. A mix of EDO and FP SIMMs/DIMMs will work, provided that matched pairs are installed in each bank.
5. The Configuration/Setup Utility must be used to install 70 ns memory modules.

Important:
Only memory modules with a maximum height of no more than 3.05 cm (1.2 inches) can be installed on the Type 6577, 6587 system board.

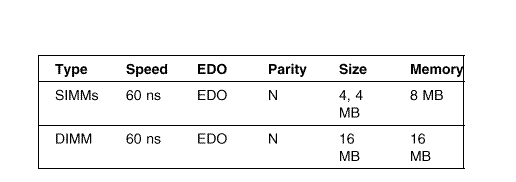

The following table shows the 8 MB and 16 MB standard memory-module configurations.

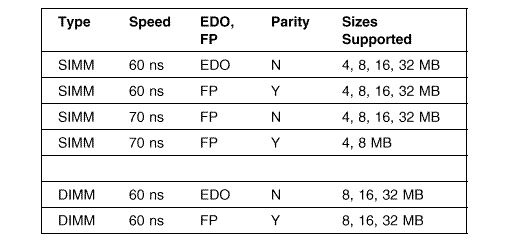

The following table shows the SIMMs and DIMMs that are supported.
