Parts Information

Document ID: LWIK-3TTHKR

TP 380E/ED,385E/ED - LCD unit FRU listing

Applicable to: World-Wide

Models 380E/380ED/385E/385ED

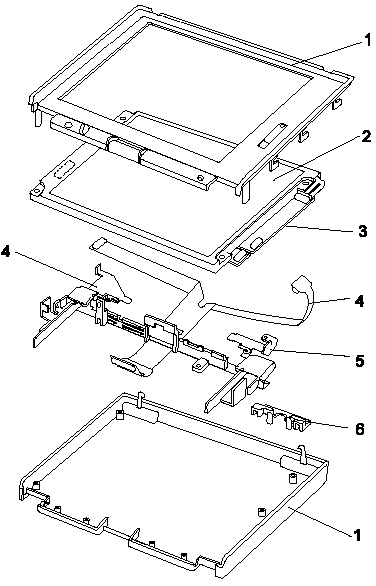

LCD FRU (FRSTN)

Index	Description	FRU #
1	LCD Cover	73H9940
2	LCD Inverter	73H9946
3	LCD Cable	12J0139
4	LCD Hinge	73H9942
5	LCD Lens ( see Misc. Parts)
6	LCD Panel(12.1" FRSTN)	12J0138
	LCD Misc. Parts Includes the following Control Knob LCD Upper Holder Latch, Right Latch, Left Latch, Spring (2) Latch, Holder (2) LED Lens Screw Cap (2) Cable Clamp (1)	73H9949

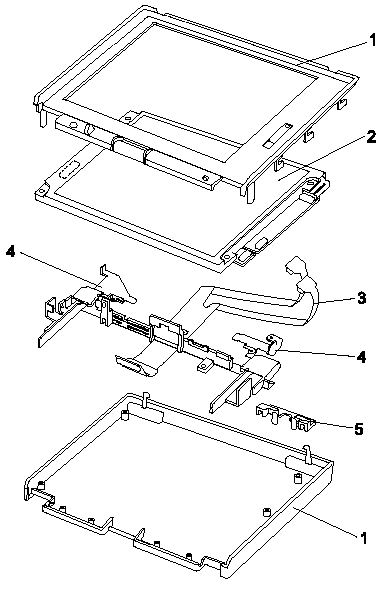

LCD FRU (TFT)
Type 1

Index	Description	FRU #
1	LCD Cover	73H9941
2	LCD Panel (12.1" TFT)	05K9308
	LCD Inverter	05K3119
3	LCD Cable	73H9948
4	LCD Hinge	73H9943
5	LCD Lens ( see Misc. Parts)	-
	LCD Misc. Parts Include the following: Control Knob LCD Upper Holder Latch, Right Latch, Left Latch, Spring (2) Latch, Holder (2) LED Lens Screw Cap (2) Cable Clamp (1)	73H9949

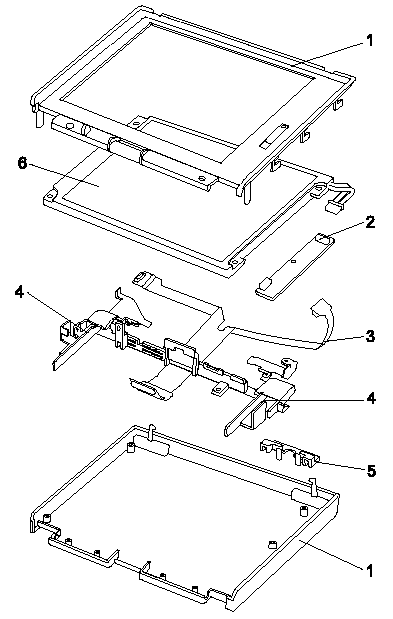

LCD FRU (TFT)
Type 2

Index	Description	FRU #
1	LCD Cover	11J8860
2	LCD Panel (12.1" TFT)	11J9623
3	LCD Inverter	11J9622
4	LCD Cable	05K4358
5	LCD Hinge	73H9943
6	LCD Lens ( see Misc. Parts)	-
	LCD Misc. Parts Includes the following: Control Knob LCD Upper Holder Latch, Right Latch, Left Latch, Spring (2) Latch, Holder (2) LED Lens Screw Cap (2) Cable Clamp (1)	73H9949

	Search Keywords
	Document Category	Hardware Maintenance Information
	Date Created	23-04-98
	Last Updated	04-03-99
	Revision Date	25-08-99
	Brand	IBM ThinkPad
	Product Family	ThinkPad 380E, ThinkPad 380ED, ThinkPad 385E, ThinkPad 385ED
	Machine Type	2635
	Model	Various
