PCServer330 - Configuration

Applicable to: World-Wide

Configuration:

Note: The SCSISelect utility program does not configure the drives in an array. For Disk Array configuration information see 'PC ServeRAID Adapter.

The Configuration/Setup utility programs are part of the basic input/output system ( BIOS ) that is shipped with the server. Use these programs to set the system date and time, define input and output device parameters, and define system security.

The PC Server System Board Diagnostic Diskette that is shipped with the server provides additional configuration and diagnostic support for the system board, disk drives, and other system components.

The built-in SCSISeclect utility program configures the SCSI devices installed in the server. You can use SCSISelect to change default values, resolve configuration conflicts, and perform a low-level format on a SCSI hard disk drive.

Configuration Overview:
Configuration is the process used to allocate resources to organize and interconnect hardware devices and software programs. The steps required to configure the server depend on the number and types of devices and programs installed. The server supports adapters and devices that comply with any of the following standards:
Peripheral Component Interconnect (PCI)
Extended Industry Standard Architecture (EISA)
Industry Standard Architecture (ISA)
Small Computer System Interface (SCSI)

In general, the greater the number and variety of hardware devices and software programs installed in the server, the more interaction required with the server and the devices to correctly configure the system.
The server is shipped with the following hardware configuration utility programs:

The built-in Configuration/Setup utility program lets you configure system board functions, such as serial and parallel port assignments, change interrupt requests settings, and the startup sequence for drives that you install. You also can use this utility program to set passwords for starting up the server and accessing the Configuration/Setup utility program.
The EISA Configuration utility program on the PC Server 330 - Type 8640 PC Server 330 EISA Configuration Diskette, lets you configure EISA and ISA adapters. The built-in SCSISelect utility program lets you configure the SCSI devices that are install in the server. You can use SCSISelect to change default values, resolve configuration conflicts, and perform a low-level format on a SCSI hard disk drive. Use the utility programs on the PC Server Utilities Diskette to back up and restore the CMOS and NVRAM configuration data.

Before installing a new device or program, read the documentation that were shipped with it. Reading the instructions helps you determine the steps required for installation and configuration. The following actions are typically, but not always, required to configure the server.
1. Run the Configuration/Setup utility program and record the current configuration settings.
2. Set jumpers or switches on the server's system board.
3. Set jumpers or switches on the device.
See the device installation instructions.
4. Install the device in the server.
5. Install software programs.
See the installation instructions that were shipped with the software.
6. Resolve configuration conflicts.
See 'Resolving Configuration Conflicts—.

Configuration/Setup Utility:
For most configurations, the server will operate using the default system settings. You need to change the settings only to resolve configuration conflicts or to enable or change device functions (for example, defining diskette types). When you want or need to change the default settings, the Configuration/Setup utility program provides a convenient way to display and change the settings.

After you run and exit the Configuration/Setup utility program, configuration information is stored in non-volatile RAM (NVRAM). The configuration information remains available for the next system startup while the server is powered off.

Always run the Configuration/Setup utility program if you have added or removed any hardware option, or if you receive an error message instructing you to do so. Also, record the current settings before making any changes.

Starting the Configuration/Setup Utility Program:
To start the Configuration/Setup utility program:
1. Power-on the server and watch the screen.
2. When the message Press F1 for Configuration/Setup appears, press F1.

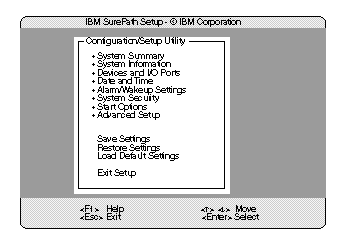

The Configuration/Setup utility Main Menu appears. For more information about the menus, see 'Using the Configuration/Setup
Utility Main Menu—.

Note: Some menus might differ slightly, depending on the BIOS version shipped with the server.
