Service Hints & Tips |
Document ID: GSMH-3B8F66 |
TP 355,360,370,750,755C/CS - Interposer Card Front View
Applicable to: World-Wide

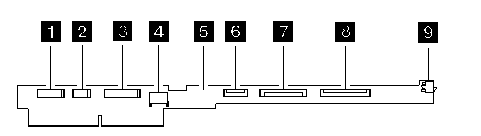

Interposer Card - All Models (Front View):
1. LCD Connector, Color
2. LCD Connector, Pen
3. LCD Connector, Monochrome and Color
4. LCD Power Connector, Color
5. Status Indicator Connector
6. Keyboard TrackPoint II Connector
7. Keyboard Signal Connector
8. Keyboard Signal Connector
9. LCD Open Detect Switch
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
08-11-96 | |
|
Last Updated |
19-08-98 | |
|
Revision Date |
18-08-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 355, ThinkPad 360, ThinkPad 370, ThinkPad 700, ThinkPad 750, ThinkPad 755C/CS | |
|
Machine Type |
2620, 9545, 2619 | |
|
Model |
Various | |
|
