Parts Information

Document ID: PFAN-3TSLXG

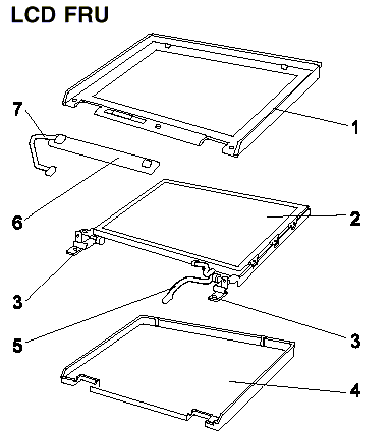

TP 770/E/ED/X/Z - LCD FRU parts listing

Applicable to: World-Wide

Note: When replacing the LCD panel or inverter, replace an A part with an A part, or replace a B part with a B part.

Index	Part	FRU
1	LCD Front Cover -For 14.1" models -For 13.3" models -For 13.7" models	12J0446 12J0447 05K5842
2	LCD Panel -For 770 14.1" model -For 770E/770ED 14.1" models -For 13.3" models-A part -For 13.3" models-B part -For 770X/770Z 14.1" models -For 770X/770Z 13.7" models	12J0438 05K9359 12J0439 05K9305 05K9391 05K9350
3	Hinge (Left and Right) -For 14.1" models -For 13.3" models -For 13.7" model	12J0436 12J0437 05K5183
4	LCD Rear Cover -For 14.1" models -For 14.1" (Korea) -For 13.3" model -For 13.3" (Korea) -For 770X/770Z (13.7"/14.1") models -For 770X/770Z Korea	12J0434 05K4573 12J0435 05K4574 05K5182 05K4573
5	LCD Cable -For 770/770E/770ED models -For 770X/770Z 14.1" models -For 770X 13.7" model -For 770Z 13.7" model	12J0440 05K2810 05K2651 05K2853
6	Inverter -For 14.1" model -For 13.3" model-A part -For 13.3" model-B part -For 770X -For 770Z	10L1161 12J0445 05K3114 10L1161 10L1255
7	Inverter Cable -For 13.7"/14.1" models -For 770X 13.7" model	12J0441 05K2830
	LCD Miscellaneous Parts for 14.1" model LCD Miscellaneous Parts for 13.3" models Includes the following: -Control Knob -Latch (Right and Left) -Screw Cap	12J0442 12J0443

	Search Keywords
	Document Category	Hardware Maintenance Information
	Date Created	22-04-98
	Last Updated	14-04-99
	Revision Date	19-01-2000
	Brand	IBM ThinkPad
	Product Family	ThinkPad 770, ThinkPad 770E/ED, ThinkPad 770X, ThinkPad 770Z
	Machine Type	9548, 9549, 9544
	Model	Various
