TP 755CD/CDV - Locations Rear View

20.674 bytes

Service Hints & Tips

Document ID: GSMH-3BFM2C

TP 755CD/CDV - Locations Rear View

Applicable to: World-Wide

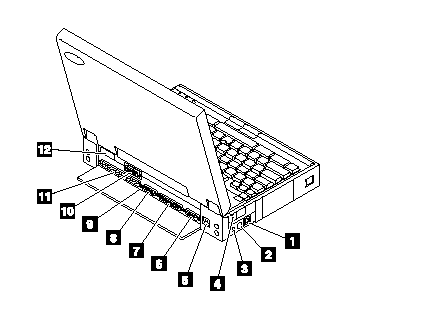

Rear View:

1

Telephony Jack

2

Microphone/Line-In Jack

3

Headphone Jack

4

Power Switch

5

Power Jack

6

Serial Connector

7

Parallel Connector

8

External-Display Connector

9

Reset Switch

10

Game Port

11

System Expansion Connector

A multimedia portable expansion unit, port replicator, or port replicator with
PCMCIA can be connected to this interface to support the following features.
- 16-bit AT-bus interface
- Serial port
- Parallel port
- Keyboard and mouse
- HDD connection
- LED control signals
- Visual signals
- Audio signals
- FDD signals
- PCMCIA signals
- Power controls
- Power line

12

Rear Infrared Port

Search Keywords

Hint Category

General Information

Date Created

15-11-96

Last Updated

10-08-98

Revision Date

07-08-99

Brand

IBM ThinkPad

Product Family

ThinkPad 755CD, ThinkPad 755CDV

Machine Type

9545

Model

Various

TypeModel

Retain Tip (if applicable)

N/A
