Service Hints & Tips |
Document ID: COBN-3G5CR9 |
Aptiva - 2162 Removals and replacements - Diskette drives
Applicable to: World-Wide
2020 - 3.5-In. Bays
Disconnect any cables on the drive.
Remove the screws.
Pull out the diskette drive.

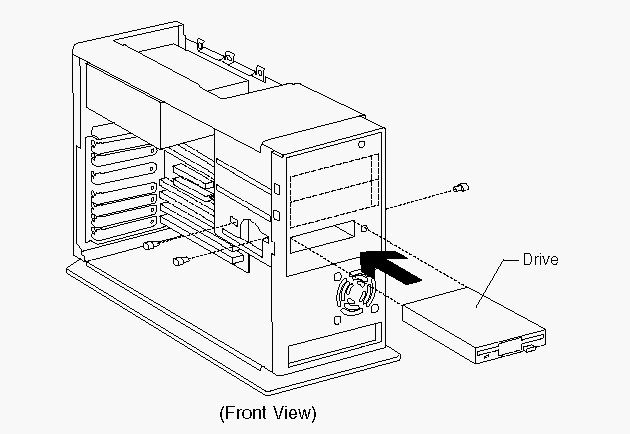

Figure 4-3. Bay 3 (3.5-In.)
2025 - 5.25-In. Bays
Disconnect any cables on the drive.
Remove the screws.
Pull out the diskette drive.
When removing a drive, install the new drive in the same bay. Any of these devices may be installed in any
5.25-in. bay:
CD-ROM drive
5.25-in. diskette drive
Dual 3.5-in. and 5.25-in. diskette drive

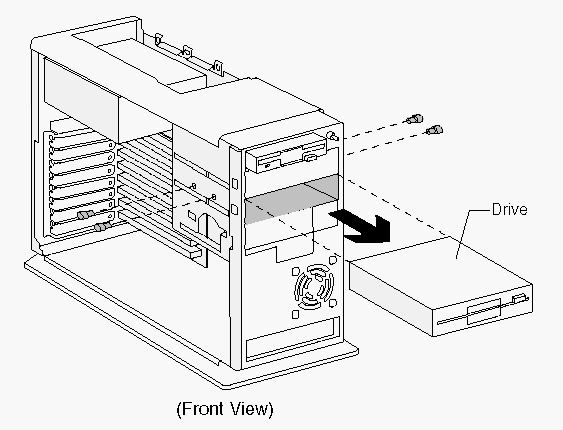

Figure 4-4. Bays 1 and 2 (5.25-In.)
|
