IBM PC340 - Type 6560 Pentium 100/133/166 MHz system board

Applicable to: World-Wide

PC 340 Series (Type 6560) - Pentium 100/133/166 MHz System Board:

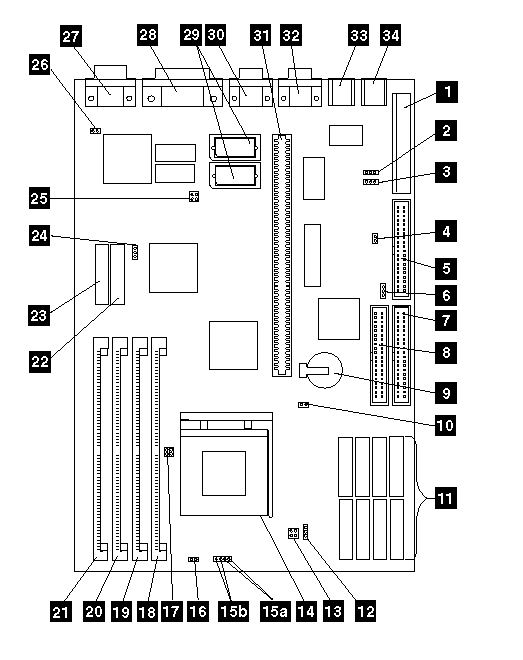

PC 340 Series (Type 6560) - Pentium 100/133/166 MHz System Board Locations:

1 - J3

Power supply connector

2 - JP11

Flash Jumper

3 - JP21

FDD write protect

4 - JP4

PS/2 Mouse Enable/Disable

5 - J5

Diskette drive connector

6 - JP23

HDD Detect

7 - J8

Primary IDE hard disk drive connector

8 - J7

Secondary IDE hard disk drive connector

9

Battery

10 - J9

Power-on password/CMOS mode

11

CACHE memory connectors

12 - JP22

Burst Mode

13

CPU voltage

14

Processor socket

15a - J12

Hard disk drive LED connector

15b - J12

Power LED connector

16 - J13

CPU fan connector

17 - JP17

CPU clock

18

Memory module connector 1 - Bank1

19

Memory module connector 2 - Bank1

20

Memory module connector 3 - Bank0

21

Memory module connector 4 - Bank0

22

Tag RAM socket

23 - J6

Feature connector

24 - JP13

Cache memory size

25 - JP14

CPU Bus clock

26 - JP3

On-board VGA

27 - P4

Display connector

28 - P1

Parallel connector

29

Video memory sockets

30 - P2

Serial connector COM2

31

PCI/ISA riser connector

32 - P3

Serial connector COM1

33 - J2

Mouse connector

34 - J1

Keyboard connector

See ¿PC 340 Series (Type 6560) - Pentium 100/133/166 MHz System Board Jumper Settings— for jumper settings.

PC 340 Series (Type 6560) - Pentium 100/133/166 MHz System Board Jumper Settings:
The following tables contain the jumper setting information. A (D) indicates the default setting.

Processor Type Selection:

Processor

JP14

JP17

P75 MHz

1-2

Open

P90 MHz

3-4

Open

P100 MHz

1-2, 3-4

Open

P120 MHz

3-4

1-2

P133 MHz

1-2, 3-4

1-2

P166 MHz

1-2, 3-4

1-2, 3-4

Cache Size Selection:

Size

JP13

256 KB (D)

1-2

512 KB

2-3

Miscellaneous Jumpers:

Jumper

Setting

Description

JP3

Short

Open

Enable on-board VGA (D)
Disable on-board VGA

JP4

Short
Open

Enable PS/2 mouse (D)
Disable PS/2 mouse

J9

1-2
2-3

Normal (D)
CMOS Data Clear (all setup data reset to default and Power-On-Password cleared)

JP11

1-2
2-3

Enable Flash (D)
Flash Lock

JP19

1-2
2-3

STD 3.3 volt
VRE 3.52 volt (D)

JP21

1-2
2-3

FDD protect, Normal (D)
FDD Write protect

JP22

1-2

2-3

Non-Linear burst, Async Cache (D)
Linear burst, sync Cache

JP23

1-2
2-3

HDD detect (D)
HDD non-detect
