Netfinity 7000 M10 - I/O Board LEDs
Applicable to: World-Wide
Source: Hardware Maintenance Manual
I/O Board LEDs

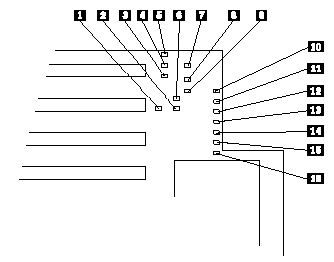

A simplified layout of the section of the I/O board containing the LEDs is shown in the following illustration.
|
1 |
32 Bit Slot Reset LED (Slots 6-10) |
|
2 |
SMI LED |
|
3 |
Power Supply Power Good LED |
|
4 |
Reserved |
|
5 |
System Power Good LED |
|
6 |
64 Bit Slot Reset LED (Slots 1-5) |
|
7 |
System NMI LED |
|
8 |
Secondary PCI Bus SERR (adaptec, system |
|
9 |
32 Bit Slot Reset LED (Slots 11-12) |
|
10 |
Secondary PCI Bus PERR (adaptec, system |
|
11 |
SERR on 64 Bit PCI (slots 1-5) |
|
12 |
PERR on 64 Bit PCI (slots 1-5) |
|
13 |
PERR on 32 Bit PCI (slots 11-12) |
|
14 |
PERR on 32 Bit PCI (slots 6-10) |
|
15 |
SERR on 32 Bit PCI (slots 6-10) |
|
16 |
SERR on 32 Bit PCI (slots 11-12) |
|
