Service Hints & Tips |
Document ID: JBAR-3VQLCE |

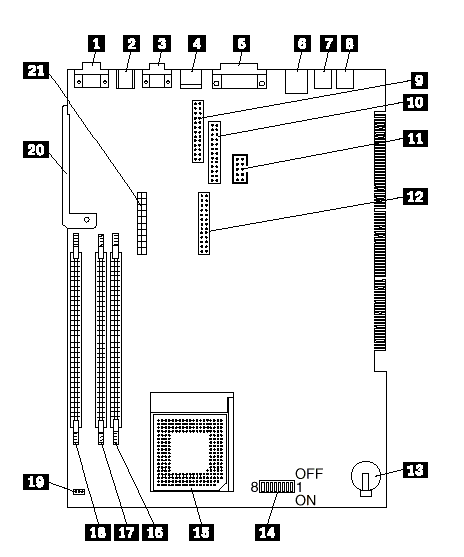

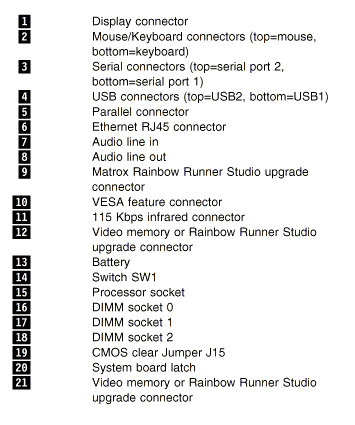

IBM PC300PL (Type 6562, 6592) - System Board Diagram/Locations
Applicable to: World-Wide
PC 300 Series (Type 6562, 6592) -Pentium Pro 166/200/233 MHz System Board:
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
23-06-98 | |
|
Last Updated |
24-06-98 | |
|
Revision Date |
23-06-99 | |
|
Brand |
IBM PC | |
|
Product Family |
PC 300PL | |
|
Machine Type |
6562, 6592 | |
|
Model |
all | |
|
TypeModel |
| |
|
Retain Tip (if applicable) |
| |
|
Reverse Doclinks |
