TP 365C/CS/CD/CSD - Parts listing

59.910 bytes

Parts Information

Document ID: RMIE-39UD2S

TP 365C/CS/CD/CSD - Parts listing

Applicable to: World-Wide

System Unit - ThinkPad 365C, CD, CS, CSD Only

Important
The following FRUs are for ThinkPad 365C, CD, CS, and CSD models only.

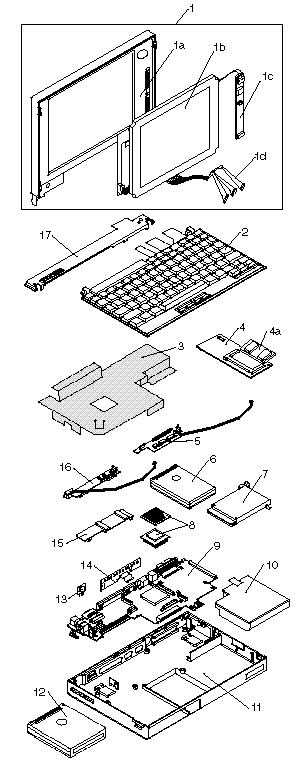

Index

FRU

1

LCD Assembly, 10.4-Inch DSTN (LCD Cover Kit, Panel, Inverter, Cable)

75H7620

1a

LCD Cover Kit, 10.4-Inch DSTN

41H9818

1b

LCD Panel, 10.4-Inch DSTN

41H7463

1c

Inverter Board, 10.4-Inch DSTN

42H4049

1d

Cable Assembly, 10.4-Inch DSTN

42H4051

1

LCD Assembly, 10.4-Inch TFT (LCD Cover Kit, Panel, Inverter, Cable)

75H7621

1a

LCD Cover Kit, 10.4-Inch TFT

41H9819

1b

LCD Panel, 10.4-Inch TFT

41H7464

1c

Inverter Board, 10.4-Inch TFT

42H4055

1d

Cable Assembly, 10.4-Inch TFT

42H4057

2

Keyboard (U.S. Only)

41H9789

3

Mylar Cover - See "Base Assembly (with Parts Kit)"

75H7624

4

8MB Memory Board Memory Board Insulated Bracket (10)

88G1262
75H7624

4a

4MB RAM Card (SO-DIMM)

92G7290

4a

16MB RAM Card (SO-DIMM)

92G7296

5

Keyboard Card

41H7436

6

Hard Disk Drive

340MB Hard Disk Drive

02K0485

540MB Hard Disk Drive

02K0486

720MB Hard Disk Drive

85G8371

810MB Hard Disk Drive

07H0392

1.08GB Hard Disk Drive

39H2221

7

PCMCIA Socket Assembly

75H7622

8

Processor, 80486-DX4 75MHz

88G1249

9

System Board (with PCMCIA Socket) - 512K VRAM System Board

76H2986

- 1MB VRAM System Board

76H2984

10

Battery Pack

41H7438

11

Lower Cover Assembly

76H3079

Lower Cover Rubber Feet (2)

75H7609

12

DASD Devices - Internal Diskette Drive Assembly

41H7444

External Diskette Drive with Cable

75H7572

CD-ROM (2X) Drive

41H7446

13

Volume Control Card

41H7434

14

LED/IR Board

41H7443

15

DC/DC Board

41H7433

16

Sound Card (16-Bit)

41H7449

16

Sound Card (No Audio)

41H7437

17

Upper Cover (with Screws, Gasket)

75H7573

AC Adapter (35W Universal)

85G6698

AC Power Cord (6-Inch - U.S.)

25H2207

Game Port Cable

75H7576

Base Assembly (With Parts Kit):

- Upper Cover Bracket with Speaker,
- Power Switch Knob, Power Bracket, - Support Bracket, Misc. Rubber Parts.
- TrackPoint Caps (2), IR Lens Plastic

41H7432

Door/Bezel Package
- PCMCIA, I/O, Modem, CD-ROM, FDD
- Replicator, Misc. Rubber Parts

41H7452

Flat Plastic Cable Kit
- DSTN, TFT, CD-ROM, Internal FDD

75H7575

Replicator Base Assembly

41H7457

Replicator Cable Cover

41H7458

Mini-Replicator Assembly

75H7528

Miscellaneous Parts/Screws Kit
-CD-ROM Removal Pin, Washers, Hex Nuts, - Misc. Rubber Parts, Various Mylar Pieces,
- Keyboard Knobs, Power Knob, Rubber Pads
- Diskette Drive Brackets, Hard Disk Brackets
- Memory Board Bracket, Power Bracket
- Screw M2.5x3.5 (4), Screw M2x4 (6),
- Screw M3x4 (4), Screw M3x6 (4)
- Screw M2x15 (2), Screw M2x7 (4)
- Screw M2x5 pan (16), Screw M3x6 pan (4)
- Screw M3x6 binding (4)

41H7456

Trackpoint Cap Kit

Click Here

Search Keywords

Document Category

Hardware Maintenance Information

Date Created

23-07-96

Last Updated

03-03-99

Revision Date

03-03-2000

Brand

IBM ThinkPad

Product Family

ThinkPad 365C/CS, ThinkPad 365CD/CSD

Machine Type

2625

Model

Various

TypeModel

Retain Tip (if applicable)

Reverse Doclinks
and Admin Purposes
