Service Hints & Tips

Document ID: MWER-3SAS7Y

PS/1 - 2133A 17A/28A/14C/19C/51D/11E/16E/46M/13T/18T System Information

Applicable to: United States

PS/1 - 2133A System Information

2133A System Architecture

Consultant	14C	19C
Expert	13T	18T
Essential	11E	16E
Investor			46M
Processor	486SX / 25	486SX / 33	486SX / 25
Cache / Max	NA	NA	NA
Video Chipset	CL-5424	CL-5424	CL-5424
VRAM / Max	512KB/1MB	512KB/1MB	512KB/1MB
Disk Drives	3.5"	Combo*	Combo*
Hard Drive	129 MB	170 MB	170 MB
Memory / Max	4 MB/64 MB	4 MB/64 MB	4 MB/64 MB
Modem Speed	2400 bps	2400 bps	2400 bps
Fax Speed (s/r)	N/A	N/A	N/A

Advisor	17A	28A
Disney			51D
Processor	486SX / 33	486 DX / 33	486SX / 33
Cache / Max	0 / 256KB	0 / 256KB	NA
Video Chipset	CL-5428	CL-5428	CL-5424
VRAM / Max	512KB/1MB	512KB/1MB	512KB/1MB
Disk Drives	Combo*	Combo*	Combo*
Hard Drive	170 MB	253 MB	170 MB
Memory / Max	4 MB/64 MB	4 MB/64 MB	4 MB/64 MB
Modem Speed	2400 bps	2400 bps	2400 bps
Fax Speed (s/r)	9600/4800	9600/4800	N/A

*The Combo drive integrates a 5.25" and a 3.5" diskette drive into a single 5.25" enclosure.
Cache denotes installed external cache memory, VRAM denotes installed video memory, Memory denotes installed system memory, Max denotes maximum expandability. Fax speed is listed only on machines whose modems have fax capabilities and are listed as (Send/Receive) bps.

Regular system memory is upgraded with 36-bit or 32-bit (parity or non-parity) industry standard 70ns 72-pin SIMM chips. If the machine has 2 SIMM sockets, it can handle up to a 32MB SIMM in each socket. If it has 4 SIMM sockets, it can handle up to a 16MB SIMM in each socket.

Video drivers for these machines are available on IBM's FTP site
You can download the Windows 3.1 driver for the CL-GD5426 chipset is at
ftp://ftp.infania.net/pccbbs/ps1/c5426_28.exe

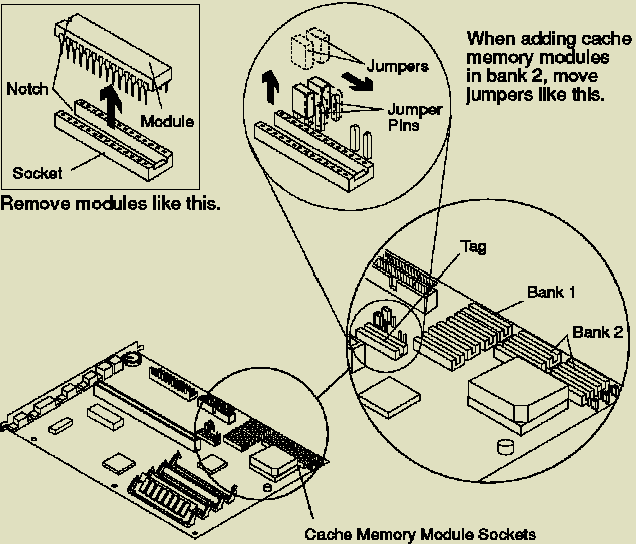

To upgrade cache memory on machines that have that capability (see product matrix), you will need to add either 4 (in bank 1 for 128K) or 8 (in both banks for 256K) 28-pin 32K x 8, 25ns SRAM modules. You will also need to add the appropriate TAG chip (32K x 8, 20ns SRAM for 256K ; 8K x 8, 20ns SRAM for 128K). If you are adding 256K of cache, you will also need to move the cache jumpers as shown below.

All of these machines use a standard IDE controller. This interface should support any standard IDE device. Some Enhanced IDE (EIDE) devices (namely hard drives larger than 528MB) may be able to function with the use of disk overlay software, normally supplied by the drive manufacturer, but is not supported by IBM. Though EIDE CD-ROMs are not supported on these machines, a CD-ROM with it's own ISA interface controller should work. Any ISA card (CD-ROM controller, modem, SCSI card) added to these machines needs to be non-"Plug and Play" to help insure compatability.
Machines that are capable of video memory upgrades require a 40-pin ZIP DRAM module configured as 256K x 16, which gives an additional 512K of video memory.

Processor Upgrade Matrix

Model	CPU	Upgrade Processor	Installation Notes
2133 14C	SX25	487SX, P23T-50	J23: 1-2, J24: 1-2, J25: 2-3
2133 13T	SX25	487SX, P23T-50	J23: 1-2, J24: 1-2, J25: 2-3
2133 11E	SX25	487SX, P23T-50	J23: 1-2, J24: 1-2, J25: 2-3
2133 19C	SX33	487SX, P23T-66	J23: 1-2, J24: 1-2, J25: 2-3
2133 18T	SX33	487SX, P23T-66	J23: 1-2, J24: 1-2, J25: 2-3
2133 16E	SX33	487SX, P23T-66	J23: 1-2, J24: 1-2, J25: 2-3
2133 17A	SX33	487SX, P23T-50, P24T-83	J23: 1-2, J24: 1-2, J25: 2-3
2133 28A	DX33	P23T-66, P24T-83	J23: 1-2, J24:1-2, J25: (1-2 for P23T-66 ; 2-3 for P24T-83)
2133 51D	SX33	487SX, P23T-66	J23: 1-2, J24: 1-2, J25: 2-3
2133 46M	SX25	487SX, P23T-50	J23: 1-2, J24: 1-2, J25: 2-3
2133 24M	SX33	487SX, P23T-66, P24T-83	J23: 1-2, J24: 1-2, J25: 2-3

The 487SX indicates the Intel 487SX math coprocessor. The P23T-50 or P23T-66 indicates the Intel 486 Overdrive Processor (50 or 66 Mhz). The P24T-63 or P24T-83 indicates the Intel Pentium Overdrive Processor (63 or 83 Mhz). If you are installing a Pentium Overdrive processor, an EPROM upgrade is needed. If your machine has 2 SIMM sockets, the EPROM FRU is 07H0993. If your machine has 4 SIMM sockets, the EPROM FRU is 07H1001. Under installation notes (Jxx: y-z), Jxx denotes a jumper and y-z denotes its position. Some machines do not have a J24 or J25, in these cases, only check J23's position. These are the only processor upgrades supported by IBM for these machines.

Phone Support for these machines is available from IBM on a fee basis over the IBM Club's 900# (1-900-555-2582). The first minute of this call is free, each additional minute is charged to your phone bill at a rate of $2.99/minute.

	Search Keywords	PS/1, 2133A
	Hint Category	Technical Specifications
	Date Created	05-03-98
	Last Updated	19-02-99
	Revision Date	19-02-2000
