TP 765D/L - 1180 Lower Shield Case

24.625 bytes

Service Hints & Tips

Document ID: LWIK-3PMM6H

TP 765D/L - 1180 Lower Shield Case

Applicable to: World-Wide

1180 Lower Shield Case
Diskette Drive or CD-ROM Drive (1020)
Battery Pack (1030)
Hard Disk Drive (1040)
Top Cover (1060)
Keyboard Unit (1070)
LCD Unit (1080)
Rear IR (1090)
System Board Assembly (1110)
Upper Shield (1120)
External FDD Connector (1130)
Video Card (1140)
DC/DC Card and Module Jack (1160)

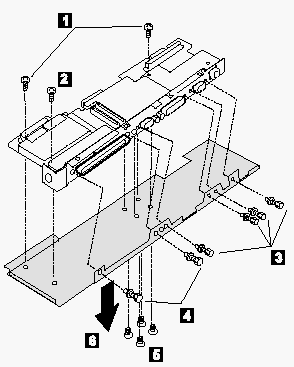

Step

Size (quantity)

Memo (torque)

1

M2.5 x 4 mm (2)

Nylon coating(4 kgcm)

2

M2.5 x 6 mm (1)

Nylon coating (4 kgcm)

3

5 mm (4)

Hexhead (5.5 kgcm)

4

5.5 mm (2)

Hexhead (5.5 kgcm)

5

M2.5 x 4 mm (4)

Flathead (3 kgcm)

Note: Do not reuse the screw that you removed. Use a new screw and tighten the screw to the torque specification shown.
