Service Hints & Tips |
Document ID: LWIK-3XZJQT |
TP 560Z - 1050 Keyboard Bezel
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.
Battery Pack (1030)

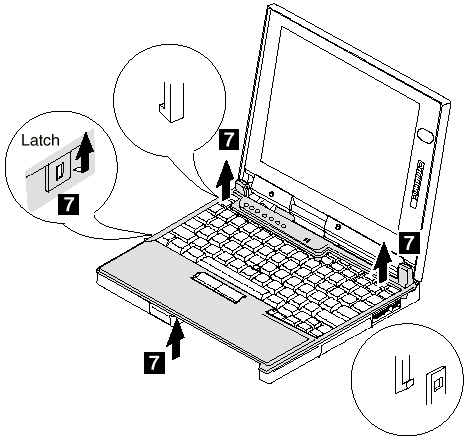

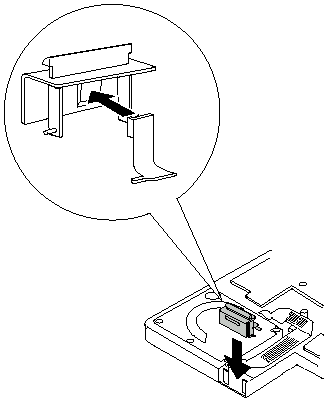

You can easily disassemble the LCD release latch. To reassemble it, do as shown:
|
