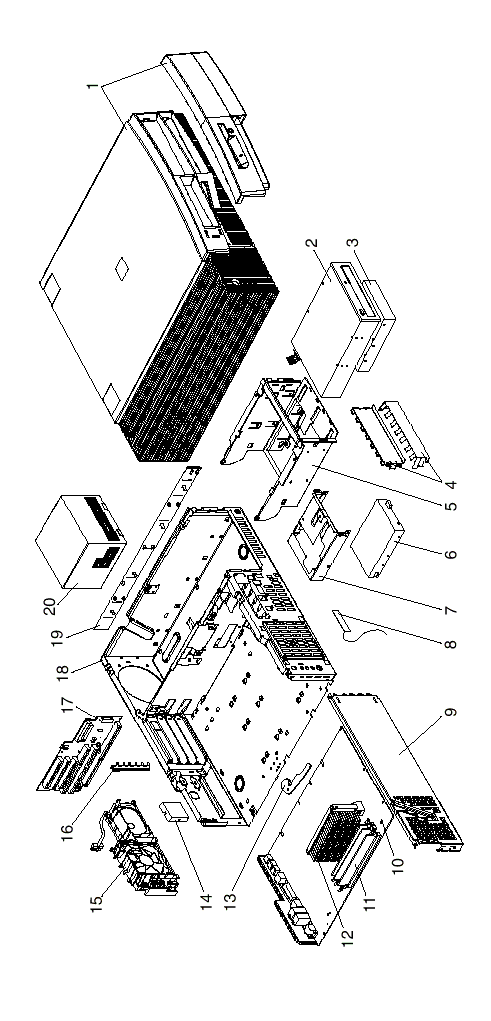

IBM PC300PL (Type 6862) - Parts Diagram/FRU listing
Applicable to: World-Wide
|
Index |
System (Type 6862) |
FRU No. |
|
1 |
Cover Assembly |
01K1607 |
|
|
Name Plate |
03K9625 |
|
|
(Order either of the below 32X Max CD-ROM drives) | |
|
2 |
CD-ROM Drive (32X Max) |
02K1115 |
|
2 |
CD-ROM Drive (32X Max) |
02K3412 |
|
|
IDE Cable, CD-ROM (1-drop) |
03K9724 |
|
3 |
4.2 GB EIDE Hard Disk Drive |
10L6011 |
|
3 |
6.4 GB EIDE Hard Disk Drive |
10L6012 |
|
|
IDE Cable |
76H7341 |
|
3 |
4.5 GB SCSI Hard Disk Drive |
10L6084 |
|
|
SCSI Adapter Card - Adaptec |
10L7095 |
|
|
SCSI Data Cable |
76H7343 |
|
|
SCSI LED Cable |
76H7344 |
|
4 |
EMC Shields |
76H7338 |
|
5 |
Hard Disk/CD-ROM Cage |
03K9641 |
|
6 |
1.44 MB 3.5-Inch Diskette Drive |
75H9550 |
|
6 |
1.44 MB 3.5-Inch Diskette Drive-Japan |
75H9552 |
|
|
Diskette Drive Cable |
76H7340 |
|
7 |
3.5-Inch Diskette Bracket |
76H7330 |
|
8 |
RFID Antenna |
03K9769 |
|
9 |
Side Bracket |
76H7329 |
|
10 |
System Board (no processor, memory,rails) |
11L1619 |
|
|
System Board Guide Rails, center and front |
03K9626 |
|
11 |
Memory - 32 MB DIMM, EDO ECC |
01K1143 |
|
11 |
Memory - 32 MB DIMM, Non-Parity |
01K1146 |
|
11 |
Memory - 64 MB DIMM, EDO ECC |
01K1140 |
|
11 |
Memory - 64 MB DIMM, Non-Parity |
01K1147 |
|
12 |
Processor Pentium II 266 MHz |
01K2169 |
|
12 |
Processor Pentium II 300 MHz |
01K4291 |
|
|
Air Duct for 300 MHz. Processor only |
03K9648 |
|
12 |
Processor Pentium II 333 MHz ECC |
01K4327 |
|
12 |
Processor Pentium II 350 MHz |
01K4333 |
|
12 |
Processor Pentium II 400 MHz |
01K4334 |
|
12 |
Processor Pentium II 450 MHz |
01K1578 |
|
13 |
Latch and Screw |
01K1612 |
|
14 |
Card Blank Bracket (AGP Cover) |
03K9623 |
|
15 |
Fan/Speaker/Power Switch Assembly |
76H7332 |
|
16 |
I/O Bracket |
03K9622 |
|
17 |
Riser Card |
11L1566 |
|
|
Riser Clips, front and rear |
02K2766 |
|
18 |
Chassis Assembly |
03K9621 |
|
19 |
Side Panel |
76H7333 |
|
20 |
145 Watt Power Supply |
01K9846 |
|
20 |
145 Watt Power Supply - Japan |
01K9848 |
|
|
Bezel Kit |
76H7339 |
|
|
Cable, Wake On Ring |
76H7345 |
|
|
Foot (4) |
93F2386 |
|
|
Jumper Kit |
93F0067 |
|
|
Keylock Assembly |
03K9624 |
|
|
Lithium Battery |
33F8354 |
|
|
Misc. Screw Kit |
93F0041 |
|
