Service Hints & Tips

Document ID: DETR-42RNNC

Aptiva - 2158/2163 Removals and replacements - Power supply

Applicable to: World-Wide

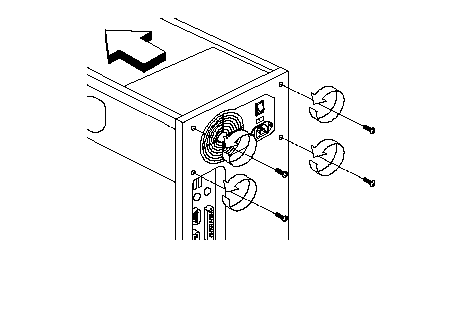

1. Disconnect all cables necessary before removal (note location of cables).

2. Remove the four screws from the chassis.

3. Push the power supply forward towards the CD/DVD-ROM drive.

4. Once it is sufficiently forward, place your hand underneath the power supply and push upwards to detach it from the chassis.

	Search Keywords
	Hint Category	Power, Hardware Installation/Configuration
	Date Created	01-12-98
	Last Updated	02-03-99
	Revision Date	01-03-2000
	Brand	IBM Aptiva
	Product Family	Aptiva
	Machine Type	2158, 2163
	Model	all
