Service Hints & Tips |
Document ID: DDSE-3UXQYZ |
SCSI Multi-Storage Enclosure - Power Supply (3517)
Applicable to: World-Wide

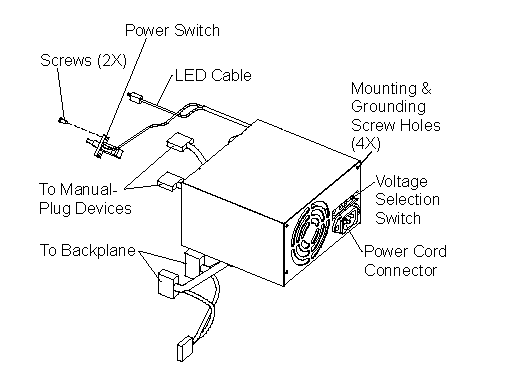

Power Supply
The power supply is mounted at the top back of the 3517.
Attention:
The Voltage Selection Switch is a two-position switch on the power supply. The switch can be set to 115V ac (in USA) or 230V ac (in some other countries). The switch must be set to match the input voltage at the wall outlet before connecting the power cord. If the 3517 is connected to the wrong level of voltage input, the 3517 will not operate and the power supply can be damaged. The power supply is not autoranging.
|
