Service Hints & Tips |
Document ID: GSMH-3EGH5G |
TP 365X/XD - 1130 System Board/PCMCIA Slot Assembly
Applicable to: World-Wide
1130 System Board / PCMCIA Slot Assembly:
Battery Pack (1020)
Insulator Sheet (1025)
Diskette Drive / CD-ROM Drive (1040)
Hard Disk Drive (1050)
Top Cover (1060)
Keyboard Unit (1070)
LCD Assembly (1080)
LCD Panel (1085)
Indicator Card (1090)
Volume Switch / Speaker (1100)
Keyboard Card (1110)
CPU Card (1120)
Be Careful:
Connect the CPU card using the procedures exactly as shown in the figures. Make sure that the two CPU card connectors are connected properly. If these connectors are not connected, you cannot power on the computer.
Do not apply any extra force to the shaded area of the CPU card when connecting.
Notes:
1. The system unit serial number must be restored when the system board is replaced. To restore the system unit serial number, select the option ¿Set system identification— on the maintenance diskette. The EEPROM on the system board contains the vital product data (VPD); that is, the system unit serial number, system board system number, and other computer-unique data.
2. Do not power off the computer when restoring the VPD. The system unit serial number label is attached to the base cover.
3. Before removing and replacing the system board, make sure that the PCMCIA cards are removed and the eject levers are not sticking out.
4. Do not pull the PCMCIA slot assembly while removing the system board.
5. When handling the PCMCIA slot assembly, be careful not to disassemble any part of it. The slot assembly is not solidly fixed when it is removed from the system board or the FRU.
|

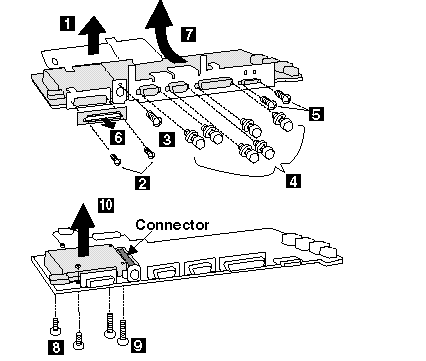

Step |
Screw Location (Quantity) |
Length |
|
2 |
System Board (2) |
M2.5 x 3 mm |
|
3 |
System Board (1) |
M2.5 x 4 mm |
|
4 |
System Board (6) |
Hex Stud |
|
5 |
System Board (2) |
M2 x 4 mm |
|
8 |
PCMCIA Slot (2) |
M2 x 4 mm and M2 nut |
|
9 |
PCMCIA Slot (2) |
M2 x 14 mm |
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information | |
|
Date Created |
20-02-97 | |
|
Last Updated |
19-08-98 | |
|
Revision Date |
18-08-99 | |
|
Brand |
IBM ThinkPad | |
|
Product Family |
ThinkPad 365X/XD | |
|
Machine Type |
2625 | |
|
Model |
Various | |
|
TypeModel |
| |
|
