TP 750 - FRU parts listing

87.480 bytes

Parts Information

Document ID: LWIK-449S3B

TP 750 - FRU parts listing

Applicable to: World-Wide

Model 750x:

System Unit (750x):

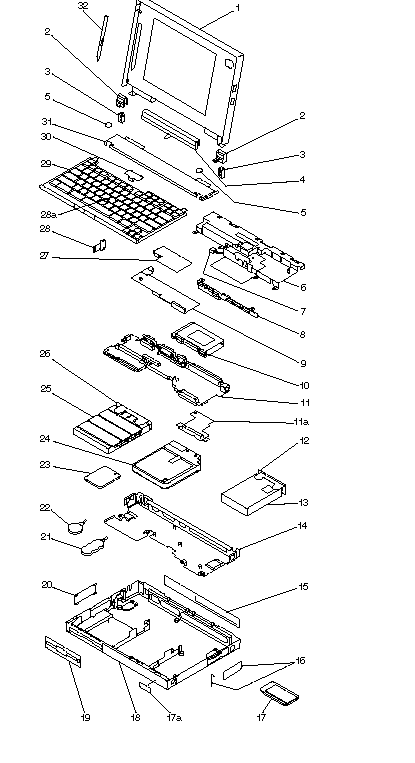

Index

1

LCD Assembly (750)1

66G3710

For Germany (Gray)1

66G3711

LCD Assembly (750C, 750Ce)1

66G5058

For Germany (Gray)1

66G5083

LCD Assembly (750P)1

66G5059

For Germany (Gray)1

66G5084

LCD Assembly (750Cs)

66G6210

For Germany (Gray)

66G6211

To view NEW LCD FRU's

2

Hinge Cover (750)

66G5048

For Germany (Gray)

66G5077

Hinge Cover (750C, 750Cs, 750Ce)

66G5047

For Germany (Gray)

66G5076

Hinge Cover (750P)

66G5049

For Germany (Gray)

66G5078

3

Hinge Bracket, Right, Left

66G5057

4

Status Indicator Assembly (750)

66G5034

For Germany (Gray)

66G5072

Status Indicator Assembly (750C)

66G5033

For Germany (Gray)

66G5071

Status Indicator Assembly (750P)

66G5035

For Germany (Gray)

66G5073

Status Indicator Assembly (750Cs)

66G6321

For Germany (Gray)

66G6324

Status Indicator Assembly (750Ce)

66G9222

For Germany (Gray)

66G9223

5

Screw Cover

66G5046

For Germany (Gray)

66G5075

6

Speaker Shield Assembly

66G5041

7

Speaker (Includes speaker holder)

66G3754

8

Interposer Card (750, 750C, 750Cs,750P)

66G5044

Interposer Card (750Ce)

66G9242

9

DC/DC Card (750, 750C, 750Cs, 750P)

66G5038

DC/DC Card (750Ce)

84G4329

DC/DC Card (750Ce, 25/75 MHz)

66G9267

10

PCMCIA Slot Assembly

66G5121

11

System Board Assembly

66G5036

(750, 750C, 750P)1
(Includes PCMCIA slot assembly, index 10, and lower shield, index 14)

System Board Assembly (750Cs)1

66G6209

For Germany
(Includes PCMCIA slot assembly, index 10, and lower shield, index 14)

66G6211

System Board (750Ce)1
(Does not include PCMCIA slot assembly, index 10, lower shield,
index 14, or processor card, index 11a)

66G9224

11a

Processor Card (750Ce)

66G9225

Processor Card (750Ce, 25/75 MHz)
(Includes hex head screws, nut, and screw cover)

84G4288

12

HDD Removal Strap

66G5122

13

Hard Disk Drive (Includes strap, index 12)

170MB

66G5066

For Germany (Gray)

66G5085

340MB

66G5068

For Germany (Gray)

66G5087

14

Lower Shield (750, 750C, 750Cs, 750P)

66G5043

Lower Shield (750Ce)

66G9227

15

Rear Connector Cover

66G5050

For Germany (Gray)

66G5079

16

PCMCIA Cover
(Includes bezels and security plate)

66G5053

For Germany (Gray)

66G5082

17

PCMCIA Device

17a

Name Label (750, 750C, 750Cs, 750P)

66G7865

For Germany (Gray)

66G7866

Name Label (750Ce)

66G9228

For Germany (Gray)

66G9229

18

Base Cover Assemblies include coil spring, insulator, foot, power switch knob, holder,
and latch buttons

Base Cover Assembly (750)

66G5125

For Netherlands, Belgium

66G5131

For Germany (Gray)

66G5128

For Japan

66G4590

Base Cover Assembly (750C)

66G5126

For Netherlands, Belgium

66G5132

For Germany (Gray)

66G5129

For Japan

66G4590

Base Cover Assembly (750Ce)

66G9217

For Netherlands, Belgium

66G9219

For Germany (Gray)

66G9218

For Japan

66G9220

Base Cover Assembly (750Cs)

66G4591

For Netherlands, Belgium

66G4593

For Germany (Gray)

66G4592

For Japan

66G4590

Base Cover Assembly (750P)

66G5127

For Netherlands, Belgium

66G5133

For Germany (Gray)

66G5130

For Japan

66G4590

19

Bezel, Diskette Drive

66G5051

For Germany (Gray)

66G5080

20

Cover, Option Bay

66G5052

For Germany (Gray)

66G5081

21

Standby Battery

66G3755

For Netherlands, Belgium

66G3761

For Switzerland

66G3758

22

Backup Battery

66G3764

23

IC DRAM Card (See options)

See below

24

Battery Pack (Nickel Metal Hydride)

66G2820

For Netherlands, Belgium

66G2822

For Switzerland

66G2821

For Denmark, Sweden, Finland, Norway

66G5063

25

Diskette Drive
(Includes strap, reference 26)

66G5060

26

Diskette Drive Removal Strap

66G5123

27

Audio Card

66G5037

28

Keyboard Lock

66G0031

28a

TrackPoint II Cap

click here

29

See Keyboard List

See below

30

Leaf Spring Plate

66G0041

31

Upper Cover (750)

66G5045

For Germany (Gray)

66G5074

Upper Cover (750C, 750Cs, 750Ce)

66G5094

For Germany (Gray)

66G5095

Upper Cover (750P)

66G6771

For Germany (Gray)

66G6772

32

Stylus Pen (750P)2

66G6695

For Germany (Gray)2

66G6696

Keyboard:

Arabic

66G0163

Belgian

66G0161

Canadian French

66G0169

Danish

66G0160

Dutch

66G0158

Finnish

66G0157

French

66G0154

German (Black)

66G6402

German (Gray)

66G0152

Greek

66G0167

Hebrew

66G0164

Icelandic

66G0170

Italian

66G0156

Japanese

66G0171

Latin American

66G0168

Norwegian

66G0162

Portuguese

66G0165

Spanish

66G0159

Swedish

66G0157

Swiss/French

66G0155

Swiss/German

66G0153

Turkish

66G0166

U.K. English

66G0151

U.S. English

66G0150

Common/Option Parts List:
Miscellaneous Parts

AC Adapter (35 W, 3-pin)

85G1952

For Japan (2-pin)

85G6669

AC Adapter (40 W, 3-pin)

49G2196

For Japan (2-pin)

49G2197

AC Adapter (40 W, 3-pin, U.S. only)
(not for 370C)

84G4320

Foot (right or left)

84G4326

Miscellaneous Parts Kit
(Includes DC-in holder, spacer, warning label)

For Models 750x

66G5039

For Models 355x, 360x, 370C, 755C, 755Cs

84G2254

PC Card Locking Bar

85G8625

Screw Kit
(Includes:
10-2.5 x 4 mm; 10-2.5 x 6 mm
10-2.5 x 8 mm, Flat head
10-2.5 x 8 mm; 10-2.5 x 16 mm
10-hex stud I/O; 10-hex stud bus
2-washer for hex stud bus)

66G5124

IC DRAM. Eject Tape

53G9318

Options:

Notes:
1. When you replace the AC adapter or the Quick Charger witha new one, use the one for the country you are in even if the system is from different country.
2. The warranty for the system unit is not applied to all options.

Audio Cable

66G5180

Car Battery Adapter
(48G9203 label sealed)

49G1148

Car Battery Adapter
(66G9984 label sealed)

84G4359

Diskette Drive Attachment Unit

66G5069

IC DRAM 2MB

07G1414

IC DRAM 4MB

07G1415

IC DRAM 8MB

07G1416

IC DRAM 16MB

66G0094

Microphone

66G7871

PS/2 Miniature Mouse

95F5723

Port Replicator

66G3575

Port Replicator with PCMCIA

66G3574

Quick Charger (3-pin)

66G2815

For Japan (2-pin)

66G2816

750X

AC Adapter (35 W, 3-pin)

85G1952

For Japan (2-pin)

85G6669

AC Adapter (40 W, 3-pin, U.S. only)

84G4320

AC Adapter (40 W, 3-pin)

49G2196

For Japan (2-pin)

49G2197

Numeric Keypad:

Belgian

95F5741

Canadian French

95F5466

Danish

95F5467

Dutch

95F5467

French

95F6313

German

95F6314

Greek

95F5467

Hebrew

95F5741

Icelandic

95F5467

Italian

95F6316

Japanese

79F6401

Norwegian

95F5467

Spanish

95F6315

Swedish/Finnish

95F5468

Swiss/French

95F5711

Swiss/German

95F5715

Turkish

95F5467

U.K. English

95F5741

U.S. English

95F5741

Accessories:

Keyboard/Mouse Cable

54G0444

Tools:

Tri-Connector Wrap Plug

72X8546

PC Test Card

35G4703

Screwdriver Kit

95F3598

ThinkPad 750Ce
Hardware Maintenance Diskette
(This diskette is common for all models of ThinkPad.)

82G3891

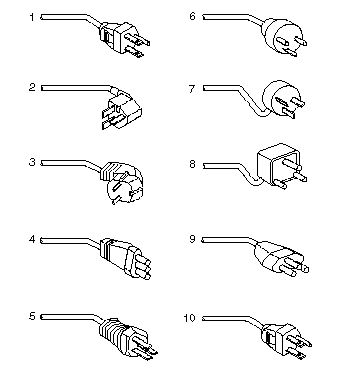

Power Cords:

Warning:
Use the power cord certified for your country.

30/40W

35W

1

Colombia, U.S., Venezuela

13F9959

25H2207

Japan, 2-pin

6454377

85G6665

Japan, 3-pin

65F0031

2

Hong Kong, Singapore, U.K.

14F0033

25H2215

3

France, Germany, Spain

13F9979

25H2209

4

Italy

14F0069

25H2223

5

Australia, New Zealand

13F9940

25H2205

6

Denmark

13F9997

25H2211

7

Israel

14F0087

25H2225

8

Bangladesh, Pakistan,Sri Lanka, South Africa

14F0015

25H22139

9

Switzerland

14F0051

25H2221

10

Thailand

1838574

25H2219

Notes:
- Models 370C, 755C, and 755Cs do not support the 30W AC adapter.
- The 30/40W cord is 6 foot long; the 35W cord is 6 inches.

Search Keywords

Document Category

Hardware Maintenance Information

Date Created

18-01-99

Last Updated

03-03-99

Revision Date

03-03-2000

Brand

IBM ThinkPad

Product Family

ThinkPad 750

Machine Type

9545

Model

Various

TypeModel

Retain Tip (if applicable)

Reverse Doclinks
and Admin Purposes

Index
1	LCD Assembly (750)1	66G3710
	For Germany (Gray)1	66G3711
	LCD Assembly (750C, 750Ce)1	66G5058
	For Germany (Gray)1	66G5083
	LCD Assembly (750P)1	66G5059
	For Germany (Gray)1	66G5084
	LCD Assembly (750Cs)	66G6210
	For Germany (Gray)	66G6211
	To view NEW LCD FRU's
2	Hinge Cover (750)	66G5048
	For Germany (Gray)	66G5077
	Hinge Cover (750C, 750Cs, 750Ce)	66G5047
	For Germany (Gray)	66G5076
	Hinge Cover (750P)	66G5049
	For Germany (Gray)	66G5078
3	Hinge Bracket, Right, Left	66G5057
4	Status Indicator Assembly (750)	66G5034
	For Germany (Gray)	66G5072
	Status Indicator Assembly (750C)	66G5033
	For Germany (Gray)	66G5071
	Status Indicator Assembly (750P)	66G5035
	For Germany (Gray)	66G5073
	Status Indicator Assembly (750Cs)	66G6321
	For Germany (Gray)	66G6324
	Status Indicator Assembly (750Ce)	66G9222
	For Germany (Gray)	66G9223
5	Screw Cover	66G5046
	For Germany (Gray)	66G5075
6	Speaker Shield Assembly	66G5041
7	Speaker (Includes speaker holder)	66G3754
8	Interposer Card (750, 750C, 750Cs,750P)	66G5044
	Interposer Card (750Ce)	66G9242
9	DC/DC Card (750, 750C, 750Cs, 750P)	66G5038
	DC/DC Card (750Ce)	84G4329
	DC/DC Card (750Ce, 25/75 MHz)	66G9267
10	PCMCIA Slot Assembly	66G5121
11	System Board Assembly	66G5036
	(750, 750C, 750P)1 (Includes PCMCIA slot assembly, index 10, and lower shield, index 14)
	System Board Assembly (750Cs)1	66G6209
	For Germany (Includes PCMCIA slot assembly, index 10, and lower shield, index 14)	66G6211
	System Board (750Ce)1 (Does not include PCMCIA slot assembly, index 10, lower shield, index 14, or processor card, index 11a)	66G9224
11a	Processor Card (750Ce)	66G9225
	Processor Card (750Ce, 25/75 MHz) (Includes hex head screws, nut, and screw cover)	84G4288
12	HDD Removal Strap	66G5122
13	Hard Disk Drive (Includes strap, index 12)
	170MB	66G5066
	For Germany (Gray)	66G5085
	340MB	66G5068
	For Germany (Gray)	66G5087
14	Lower Shield (750, 750C, 750Cs, 750P)	66G5043
	Lower Shield (750Ce)	66G9227
15	Rear Connector Cover	66G5050
	For Germany (Gray)	66G5079
16	PCMCIA Cover (Includes bezels and security plate)	66G5053
	For Germany (Gray)	66G5082
17	PCMCIA Device
17a	Name Label (750, 750C, 750Cs, 750P)	66G7865
	For Germany (Gray)	66G7866
	Name Label (750Ce)	66G9228
	For Germany (Gray)	66G9229
18	Base Cover Assemblies include coil spring, insulator, foot, power switch knob, holder, and latch buttons
	Base Cover Assembly (750)	66G5125
	For Netherlands, Belgium	66G5131
	For Germany (Gray)	66G5128
	For Japan	66G4590
	Base Cover Assembly (750C)	66G5126
	For Netherlands, Belgium	66G5132
	For Germany (Gray)	66G5129
	For Japan	66G4590
	Base Cover Assembly (750Ce)	66G9217
	For Netherlands, Belgium	66G9219
	For Germany (Gray)	66G9218
	For Japan	66G9220
	Base Cover Assembly (750Cs)	66G4591
	For Netherlands, Belgium	66G4593
	For Germany (Gray)	66G4592
	For Japan	66G4590
	Base Cover Assembly (750P)	66G5127
	For Netherlands, Belgium	66G5133
	For Germany (Gray)	66G5130
	For Japan	66G4590
19	Bezel, Diskette Drive	66G5051
	For Germany (Gray)	66G5080
20	Cover, Option Bay	66G5052
	For Germany (Gray)	66G5081
21	Standby Battery	66G3755
	For Netherlands, Belgium	66G3761
	For Switzerland	66G3758
22	Backup Battery	66G3764
23	IC DRAM Card (See options)	See below
24	Battery Pack (Nickel Metal Hydride)	66G2820
	For Netherlands, Belgium	66G2822
	For Switzerland	66G2821
	For Denmark, Sweden, Finland, Norway	66G5063
25	Diskette Drive (Includes strap, reference 26)	66G5060
26	Diskette Drive Removal Strap	66G5123
27	Audio Card	66G5037
28	Keyboard Lock	66G0031
28a	TrackPoint II Cap	click here
29	See Keyboard List	See below
30	Leaf Spring Plate	66G0041
31	Upper Cover (750)	66G5045
	For Germany (Gray)	66G5074
	Upper Cover (750C, 750Cs, 750Ce)	66G5094
	For Germany (Gray)	66G5095
	Upper Cover (750P)	66G6771
	For Germany (Gray)	66G6772
32	Stylus Pen (750P)2	66G6695
	For Germany (Gray)2	66G6696

Arabic	66G0163
Belgian	66G0161
Canadian French	66G0169
Danish	66G0160
Dutch	66G0158
Finnish	66G0157
French	66G0154
German (Black)	66G6402
German (Gray)	66G0152
Greek	66G0167
Hebrew	66G0164
Icelandic	66G0170
Italian	66G0156
Japanese	66G0171
Latin American	66G0168
Norwegian	66G0162
Portuguese	66G0165
Spanish	66G0159
Swedish	66G0157
Swiss/French	66G0155
Swiss/German	66G0153
Turkish	66G0166
U.K. English	66G0151
U.S. English	66G0150

AC Adapter (35 W, 3-pin)	85G1952
For Japan (2-pin)	85G6669
AC Adapter (40 W, 3-pin)	49G2196
For Japan (2-pin)	49G2197
AC Adapter (40 W, 3-pin, U.S. only) (not for 370C)	84G4320
Foot (right or left)	84G4326
Miscellaneous Parts Kit (Includes DC-in holder, spacer, warning label)
For Models 750x	66G5039
For Models 355x, 360x, 370C, 755C, 755Cs	84G2254
PC Card Locking Bar	85G8625
Screw Kit (Includes: 10-2.5 x 4 mm; 10-2.5 x 6 mm 10-2.5 x 8 mm, Flat head 10-2.5 x 8 mm; 10-2.5 x 16 mm 10-hex stud I/O; 10-hex stud bus 2-washer for hex stud bus)	66G5124
IC DRAM. Eject Tape	53G9318

Audio Cable	66G5180
Car Battery Adapter (48G9203 label sealed)	49G1148
Car Battery Adapter (66G9984 label sealed)	84G4359
Diskette Drive Attachment Unit	66G5069
IC DRAM 2MB	07G1414
IC DRAM 4MB	07G1415
IC DRAM 8MB	07G1416
IC DRAM 16MB	66G0094
Microphone	66G7871
PS/2 Miniature Mouse	95F5723
Port Replicator	66G3575
Port Replicator with PCMCIA	66G3574
Quick Charger (3-pin)	66G2815
For Japan (2-pin)	66G2816

750X
AC Adapter (35 W, 3-pin)	85G1952
For Japan (2-pin)	85G6669
AC Adapter (40 W, 3-pin, U.S. only)	84G4320
AC Adapter (40 W, 3-pin)	49G2196
For Japan (2-pin)	49G2197

Belgian	95F5741
Canadian French	95F5466
Danish	95F5467
Dutch	95F5467
French	95F6313
German	95F6314
Greek	95F5467
Hebrew	95F5741
Icelandic	95F5467
Italian	95F6316
Japanese	79F6401
Norwegian	95F5467
Spanish	95F6315
Swedish/Finnish	95F5468
Swiss/French	95F5711
Swiss/German	95F5715
Turkish	95F5467
U.K. English	95F5741
U.S. English	95F5741

Tri-Connector Wrap Plug	72X8546
PC Test Card	35G4703
Screwdriver Kit	95F3598
ThinkPad 750Ce Hardware Maintenance Diskette (This diskette is common for all models of ThinkPad.)	82G3891

		30/40W	35W
1	Colombia, U.S., Venezuela	13F9959	25H2207
	Japan, 2-pin	6454377	85G6665
	Japan, 3-pin	65F0031
2	Hong Kong, Singapore, U.K.	14F0033	25H2215
3	France, Germany, Spain	13F9979	25H2209
4	Italy	14F0069	25H2223
5	Australia, New Zealand	13F9940	25H2205
6	Denmark	13F9997	25H2211
7	Israel	14F0087	25H2225
8	Bangladesh, Pakistan,Sri Lanka, South Africa	14F0015	25H22139
9	Switzerland	14F0051	25H2221
10	Thailand	1838574	25H2219

	Search Keywords
	Document Category	Hardware Maintenance Information
	Date Created	18-01-99
	Last Updated	03-03-99
	Revision Date	03-03-2000
	Brand	IBM ThinkPad
	Product Family	ThinkPad 750
	Machine Type	9545
	Model	Various
	TypeModel
	Retain Tip (if applicable)
	Reverse Doclinks and Admin Purposes
