Service Hints & Tips |
Document ID: COBN-38YCRT |

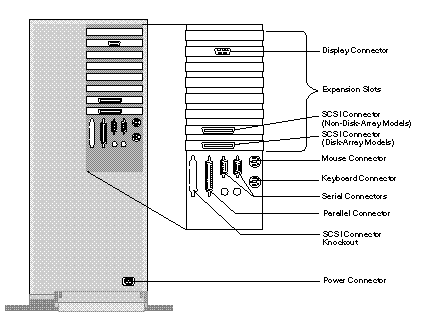

PC Server 520 - Input / output connectors diagram (8641-EZ0, EZV, EZL, EZS, EZE)
Applicable to: World-Wide
Input/Output Connectors:
Power Connector:
The power cable connects here.
Keyboard Connector:
The keyboard cable connects here.
Mouse Connector:
The mouse cable connects here. This port also is called an auxiliary-device or pointing-device port.
Parallel Connector:
One 25-pin parallel connector is provided. This is where the signal cable for a parallel printer or other parallel device connects to your server.
SCSI Connector Knockout:
This knockout allows access to the internal connector on a second SCSI-2 adapter.
Serial Connectors:
Two 9-pin serial connectors (A and B) are provided. The serial signal cable for a modem or other serial device usually connects here. If you are using a 25-pin signal cable, you need a 9-pin-to-25-pin adapter cable.
SCSI Connector:
External small computer system interface (SCSI) devices attach here.
Display Connector:
The display signal cable attaches to the connector on this adapter.
|
