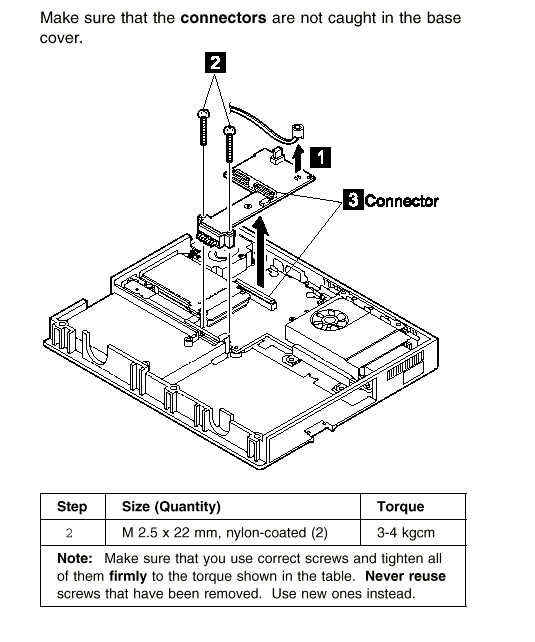

TP 380Z - 1120 DC/DC CARD Removal
Applicable to: World-Wide
The following information is intended for IBM Dealers and Authorized Servicers only. Customers attempting to follow any of the procedures below may void their warranty.
Battery Pack (1020)
Keyboard Unit (1040)
CD-ROM and Diskette Drive Assembly (1060)
LCD Unit (1080)
Upper Shield Case (1100)
|
