Service Hints & Tips |
Document ID: GSMH-3EXKEQ |
PC Server 325 - System board
Applicable to: World-Wide

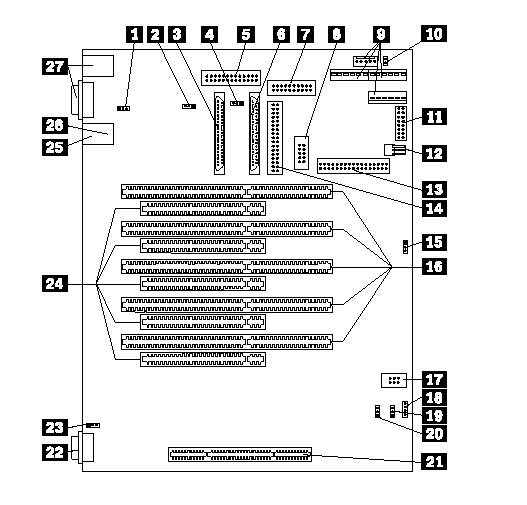

System Board:
Note:
A black square ( ) indicates pin 1.
|
1 |
Ethernet Enable Jumper (J22) |
|
2 |
SCSI Controller Enable Jumper (J26) |
|
3 |
External SCSI Connector |
|
4 |
External SCSI Termination Jumper (J29) |
|
5 |
Parallel Connector |
|
6 |
Internal SCSI Connector |
|
7 |
Serial Connector |
|
8 |
Infrared Connector |
|
9 |
Power Connectors |
|
10 |
Hard Drive Fan Connector |
|
11 |
Operator Panel Connector |
|
12 |
System Fan Connector |
|
13 |
System Management Connector |
|
14 |
Diskette Drive Connector |
|
15 |
Flash Write Protect Jumper (J30) |
|
16 |
EISA/ISA Connectors |
|
17 |
C2 Security Cable Connector |
|
18 |
Speaker Connector |
|
19 |
System Management Jumper (J49) |
|
20 |
Power-on Password Jumper (J12) |
|
21 |
Processor Board Connector |
|
22 |
Video Connector |
|
23 |
Video Enable Jumper (J25) |
|
24 |
PCI Connectors |
|
25 |
Keyboard Connector |
|
26 |
Mouse Connector |
|
27 |
Ethernet Connectors |
|
Search Keywords |
| |
|
Hint Category |
Hardware Maintenance Information, Processors | |
|
Date Created |
07-03-97 | |
|
Last Updated |
22-01-99 | |
|
Revision Date |
05-08-99 | |
|
Brand |
IBM PC Server | |
|
Product Family |
PC Server 325 | |
|
Machine Type |
8639 | |
|
Model |
EJ0; ES0; ESV; RD0; RF0; RS0; XD0; XDV; XF0; XFV; XJ0; XS0; XSV; YS0 | |
|
