PCServer330 - Controls and Indicators

Applicable to: World-Wide

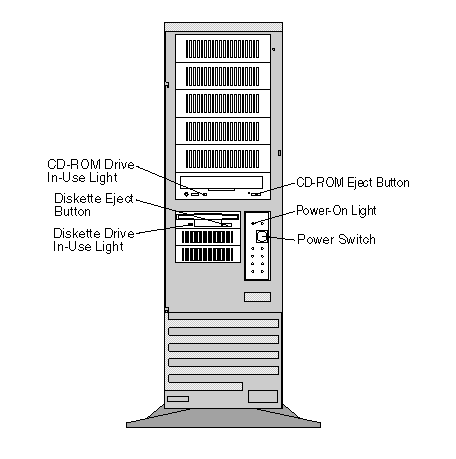

Controls and Indicators (Non-Hot-Swap Server):

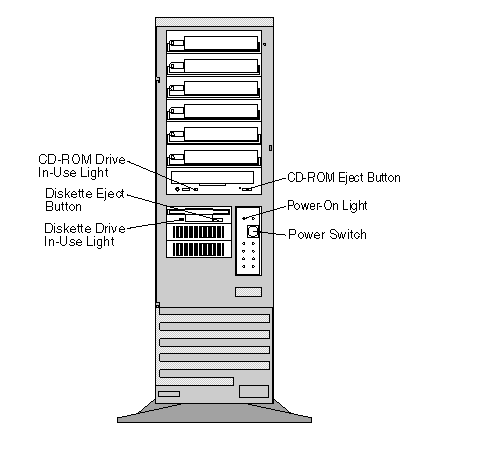

Controls and Indicators (Hot-Swap Server):

Controls Indicators Descriptions:

CD-ROM Eject Button:
Push this button to release the CD from the CD-ROM drive.

Power-On Light:
This green LED lights when you power-on the server by pressing the power switch, and when the server powers on in the Unattended mode.

Power Switch:
Use this switch to power-on the server manually, or return the server to Standby mode. The automatic restart feature, which enables the server to restart following a momentary power loss, means that the server is never completely powered-off.

Note: Do not set the server to the Standby mode if any of the drive In-Use lights are on. This might damage the information stored on a hard disk or diskette.

You can configure the server to start at a specified date and time, or when it receives a signal from either serial port. (For more information on setting Unattended startup, see ¿Alarm/Wakeup Settings—.)

To toggle the server:
- To the Attended mode from the Standby mode, press and release the power switch.
- Attended mode to the Standby mode, press the power switch in slowly just until the power-on light goes out, and then immediately release the switch.

Diskette-Drive In-Use Light:
This light comes on when the drive is accessing a diskette.

Diskette Eject Button:
Push this button to release a diskette from the drive.

CD-ROM Drive In-Use Light:
This light comes on when the CD-ROM drive is accessed.
