To create the device driver diskettes for your ThinkPad for Windows 95, Windows 98, or Windows NT follow these instructions.
1. Click on Start, Programs, ThinkPad 390, and then Diskette Factory.

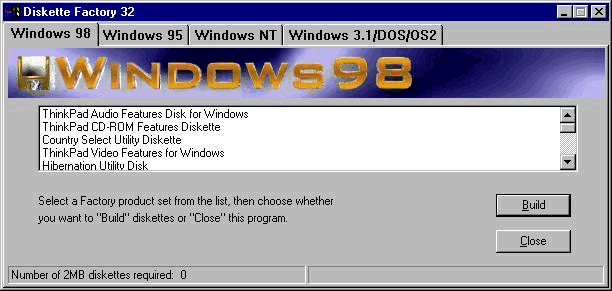

2. At the Diskette Factory 32 window, select the the Operating System you want to create the device driver diskettes for, then highlight the diskette image you want to create and click on Build.
Note:
The drivers are also available from diskette factory on the Thinkpad Customization CD.
To access diskette factory from the Customization CD:
1. Run SYSMGR.EXE (The Thinkpad Customization Center) from the CD
(Note: if AutoRun is enabled this application will start automatically when the CD is inserted.
2. Select System Customization
3. Select Diskette Factory
The tables below list the diskettes you can create for each operating system.
Version numbers marked with an * have updated drivers available on the web.
Windows 98 Device Drivers
|
Driver Name |
# of disks |
Version # |
\Disketts\ |
|
ThinkPad CD-ROM Features Diskette |
1 |
v3.12 |
M27L2648 |
|
ThinkPad Audio Features Diskette for Windows |
2 |
v1.43 |
M27L8232 |
|
Country Select Utility Diskette |
1 |
v5.14 |
M27L8246 |
|
ThinkPad Video Features Diskette for Windows |
1 |
v2.01 |
M27L8227 |
|
Hibernation Utility Diskette |
1 |
v1.00 |
M27L8250 |
|
IBM ThinkPad Modem for Windows 95/98 |
1 |
v5.28 |
M27L8243 |
|
IBM ThinkPad Modem Ring for Windows |
1 |
v1.426b |
M27L8223 |
|
TrackPoint4 Device Driver Disk II for Windows 95/98/NT |
1 |
v1.10 |
m27L8165 |
|
ThinkPad Utility Disk |
1 |
v1.02 |
M27L8222 |
|
Warm Swap Driver for Windows |
1 |
v3.10.05B |
M27L8247 |
|
ConfigSafe for Windows |
2 |
v2.00.02 |
CFGSAFE |
|
IBM Internet Connection |
1 |
v4.18.1 |
IGN |
|
Intelliquest - IBM Registration |
1 |
v2.1 |
INTQUEST |
|
Total number of diskettes: |
15 |
. |
. |
Windows 95 Device Drivers
|
Driver Name |
# of disks |
Version # |
\Disketts\ |
|
ThinkPad Audio Features Diskette for Windows |
2 |
v1.43 |
M27L8232 |
|
ThinkPad CD-ROM Features Diskette |
1 |
v3.12 |
M27L2648 |
|
Country Select Utility Diskette |
1 |
v5.14 |
M27L8246 |
|
ThinkPad Video Features Diskette for Windows 98/95 |
1 |
v2.01 |
M27L8227 |
|
IBM ThinkPad Modem for Windows 95/98 |
1 |
v5.28 |
M27L8243 |
|
ThinkPad CardWorks for Windows 95 |
3 |
v5.50.06s |
M27L8237 |
|
Windows 95 Supplement File Diskette Version 1.00 |
1 |
v1.10 |
M27L8249 |
|
TrackPoint4 Device Driver Disk II for Windows 95/98/NT |
1 |
v1.10 |
m27L8165 |
|
ThinkPad Utility Disk |
1 |
v1.02 |
M27L8222 |
|
Warm Swap Driver for Windows |
1 |
v3.10.05B |
M27L8247 |
|
Total number of diskettes: |
16 |
. |
. |
Windows NT Device Drivers
|
Driver Name |
# of disks |
Version # |
\Disketts\ |
|
ThinkPad Audio Features Disk for Windows NT 4.0 |
1 |
v1.26 |
M27L8234 |
|
ThinkPad Video Features for Windows NT 4.0 |
1 |
4.08 |
M27L8228 |
|
IBM ThinkPad Modem for Windows NT 3.51/4.0 |
2 |
v5.19 |
M27L8244 |
|
NANS Driver disk for Win NT |
1 |
v1.00 |
M27L8248 |
|
ThinkPad CardWizard for Windows NT 4.0 |
1 |
v4.00.09a3 |
M27L8240 |
|
TrackPoint4 Device Driver Disk II for Windows 95/98/NT |
1 |
v1.10 |
m27L8165 |
|
Total number of diskettes: |
14 |
. |
. |
Windows 3.1/DOS/OS2
The OS/2 and DOS/Windows 3.11 drivers are not available through diskette factory. You can download them from the Internet by clicking here, and going to the ThinkPad 390 Series Device Driver File Matrix
|
